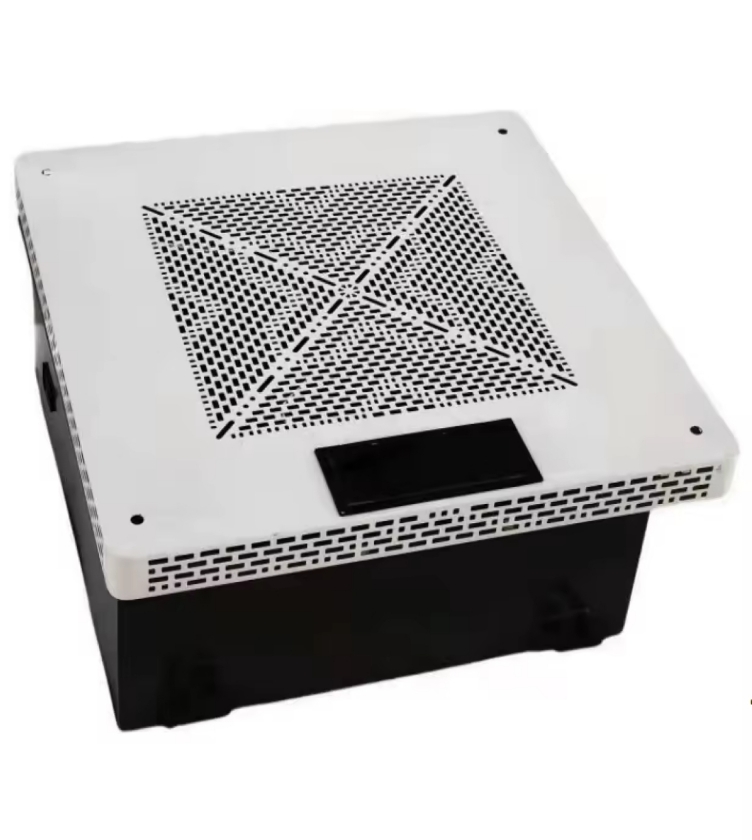

Ceiling Type Plasma Air Sterilizer FY PL-150Q

The plasma air sterilizer mainly uses plasma as the bactericidal factor. It is used for indoor air disinfection, can kill bacteria in the air, and can be used in places with people. It is suitable for air disinfection in Class II, III and IV environments such as general operating rooms, delivery rooms, baby rooms, premature infant rooms, supply rooms and burn wards in hospitals, as well as indoor air disinfection in industries such as pharmaceuticals, food, schools and public places.

• Filtration and dust removal: Physical filtration method in air laminar flow cleaning technology is adopted to remove dust and bacteria from the air.

•  Safe and reliable: This machine is a dynamic air disinfection equipment, allowing human-machine coexistence, harmless to people and non-corrosive to equipment. It can also be used for static air disinfection in unmanned places.

• Easy to use: The sterilizer has four series of products: wall-mounted, mobile, cabinet-type and ceiling-mounted. All machines are equipped with functions such as microcomputer program control, far-infrared remote control, automatic monitoring of plasma faults, wind speed adjustment, automatic accumulation of working hours, and Beijing time display.

  Product Model	FYPL – 150Q
  Applicable Volume (m³) ≤	150
  Recommended Time for Disinfection at High Wind Speed (min)	90
  Circulating Air Volume (m³/h) ≥	1200
  Input Power (VA) ≤	160
  Fuse (A)	2
  Noise db (A) ≤	45
  Plasma Density	4.08×10¹⁶/m³ – 1.37×10¹⁷/m³
  Ozone Content in Working Environment (mg/m³)	0.1
  Disinfection Efficiency	Within 120 minutes, the extinction rate of the simulation experiment for Staphylococcus albicans is ≥ 99.9%, and the extinction rate of the field experiment for natural bacteria in the air is ≥ 90%.
  Installation Method	Built – in
