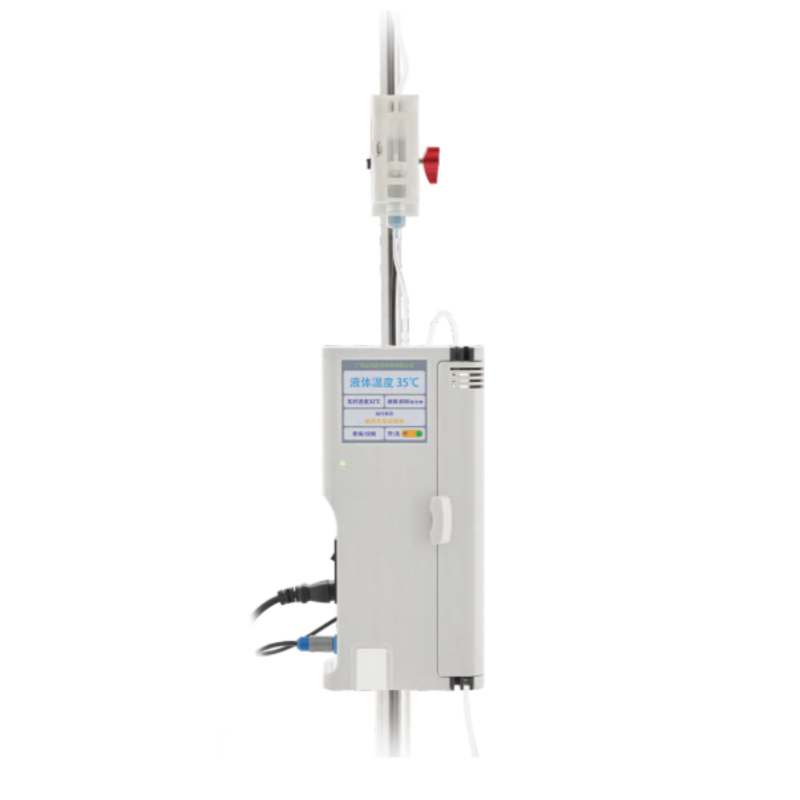

Blood Transfusion And Infusion Warmer ZZ ZZSY001

Easy Operation: No consumables, 3-second infusion tube installation, with a large-flow intelligent infusion speed detector .
Safe & Reliable: Blood transfusion safety tested, bubble-free with suspended infusion tubes, rapid heating/cooling .

Easy operation, no need consumables, 3 seconds to complete the whole process of installing infusion tube;
Safe and Reliable, has passed the safety evaluation test of blood transfusion;
Advanced technology, accurate configuration: Large flow intelligent infusion speed detector (at least 11-450 drops/min) to monitor the current infusion speed;
The infusion tube can be freely placed and remains suspended in the heating chamber. The heating tube does not experience compression, preventing the formation of bubbles;
Rapid Heating/Cooling Function:
Heating: Room Temp 25℃→42℃ (1 - 3 min); Cooling: 42℃→32℃ (1 min)

Item	ZZSY001	ZZSY002	ZZSY003
Weight	1KG	1KG	1KG
Time To The Set Temp	Heating Chamber:32℃-42℃ by step in 0.1℃	35℃	Low:32℃ Mid:35℃ High:38℃
Heating Channel	Dual:can heat two infusion tubes at same time but both tubes must share the same temp. and opearating mode settings.	Single	Single
Drop Speed Monitoring Device	√	√	√
Must Connect The Drop Speed Monitoring Device or not	NO	YES	YES
Fault Alarms	High-Temp, Low-Temp, Over-Temp,Sensor Fault,Blower Fault, Damper Fault, Flow Blockaged/Completed	High-Temp, Low-Temp, Over-Temp,Sensor Fault,Blower Fault, Damper Fault, Flow Blockaged/Completed	High-Temp, Low-Temp, Over-Temp,Sensor Fault,Blower Fault, Damper Fault, Flow Blockaged/Completed
Waterproof	IPX5	IPX5	IPX5
Timer Function	With built-in time, can monitor and accurately record and display a single heating working time and equipment cumulative operating time to better maintenance.	With built-in time, can monitor and accurately record and display a single heating working time and equipment cumulative operating time to better maintenance.	With built-in time, can monitor and accurately record and display a single heating working time and equipment cumulative operating time to better maintenance.

Description

Item	ZZSY001	ZZSY002	ZZSY003
Weight	1KG	1KG	1KG
Time To The Set Temp	Heating Chamber:32℃-42℃ by step in 0.1℃	35℃	Low:32℃ Mid:35℃ High:38℃
Heating Channel	Dual:can heat two infusion tubes at same time but both tubes must share the same temp. and opearating mode settings.	Single	Single
Drop Speed Monitoring Device	√	√	√
Must Connect The Drop Speed Monitoring Device or not	NO	YES	YES
Fault Alarms	High-Temp, Low-Temp, Over-Temp,Sensor Fault,Blower Fault, Damper Fault, Flow Blockaged/Completed	High-Temp, Low-Temp, Over-Temp,Sensor Fault,Blower Fault, Damper Fault, Flow Blockaged/Completed	High-Temp, Low-Temp, Over-Temp,Sensor Fault,Blower Fault, Damper Fault, Flow Blockaged/Completed
Waterproof	IPX5	IPX5	IPX5
Timer Function	With built-in time, can monitor and accurately record and display a single heating working time and equipment cumulative operating time to better maintenance.	With built-in time, can monitor and accurately record and display a single heating working time and equipment cumulative operating time to better maintenance.	With built-in time, can monitor and accurately record and display a single heating working time and equipment cumulative operating time to better maintenance.
