Biological Safety Cabinet DE Research Grade Class A2
Description

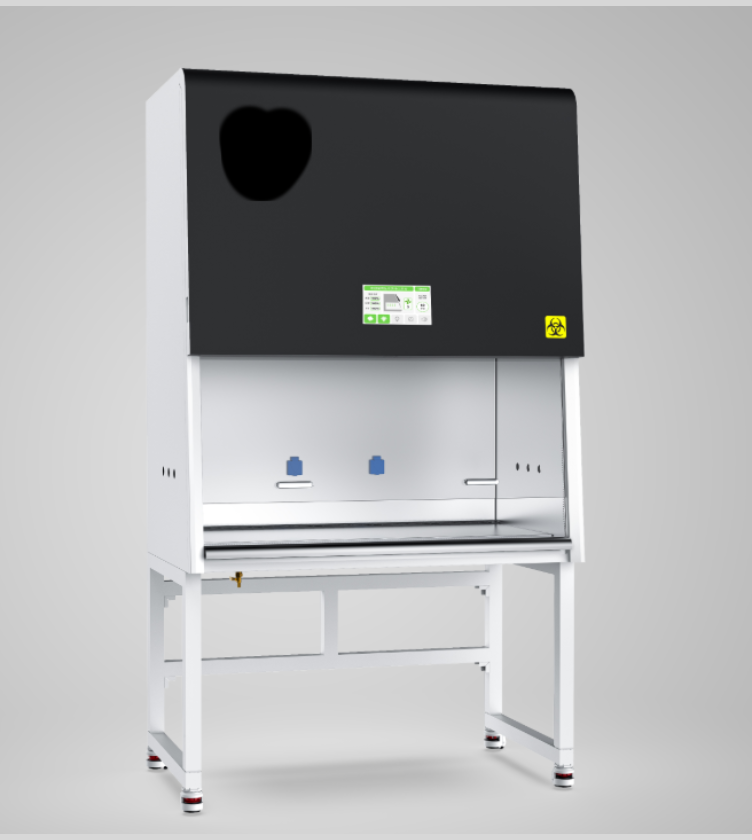

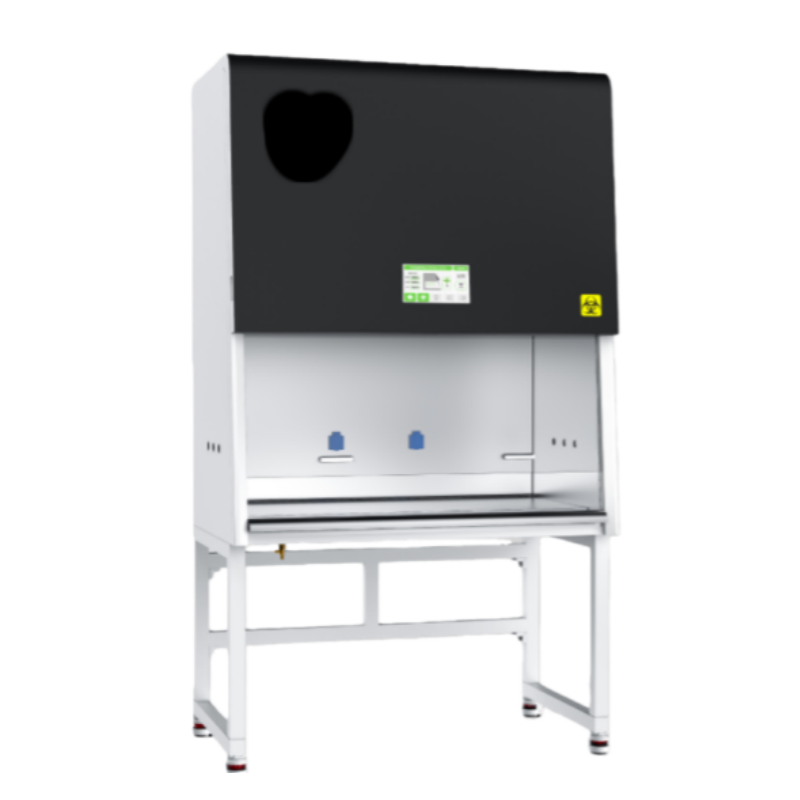

Research Grade Class A2 Biological Safety Cabinet
01. Intelligent brushless DC fan control system, with independent automatic control for downflow and exhaust fans.
02. Dual wind speed sensors independently detect downflow and exhaust air speeds (differential pressure sensor optional).
03. Enters safe energy-saving mode after front window closure, running at low speed continuously (70% energy savings).
04. Equipped with dual ultra-high efficiency ULPA filters (99.9995% filtration efficiency for 0.12μm particles).
05. 10-inch touchscreen HD display, full digital control, 7×24h scheduling function.
06. Real-time monitoring of inflow/downflow air velocities + airflow fluctuation alarm.
07. Filter/UV lamp lifespan display (auto-reminder when lifespan < 10%).
08. Audible/visual alarm if front window glass door is not at safe height.
09. Scheduled timing for UV lamps/fans (7×24h auto on/off, reduces waiting time).
10. Ergonomic beveled front operation surface (human engineering design).
11. Full-steel construction + silver ion antibacterial coating (99.99% antibacterial rate).
12. Fingerprint-resistant SUS304 worktop (50kg load capacity, compatible with various instruments).
13. 780mm-high integrated SUS304 inner liner (weld-free, large arc design, no cleaning dead corners).
14. Front window retractable below worktop for easy cleaning.
15. Two waterproof sockets in work area (flexible operation).
16. High-strength base with Form casters + threaded support feet (worktop leveling adjustable).
17. Optional accessories: service valve holes, detachable armrests (one-piece/saddle-type), paper grilles, animal hair filtration system.
| Product Model | BSC-1000ⅡA2-U | BSC-1200ⅡA2-U | BSC-1500ⅡA2-U | BSC-1800ⅡA2-U |
|---|---|---|---|---|
| Overall Dimensions (mm) | 1100×800×2200 | 1300×800×2200 | 1600×800×2200 | 2000×800×2200 |
| Work Area Dimensions (mm) | 1000×650×780 | 1200×650×780 | 1500×650×780 | 1850×650×780 |
| Exhaust Air Volume | 485m³/h | 594m³/h | 742m³/h | 915m³/h |
| Downflow Air Volume | 772m³/h | 926m³/h | 1158m³/h | 1428m³/h |
| Total Air Volume | 1267m³/h | 1520m³/h | 1900m³/h | 2344m³/h |
| Noise | ≤63dB(A) | ≤63dB(A) | ≤67dB(A) | ≤67dB(A) |
| Downflow Air Velocity | 0.33m/s | 0.33m/s | 0.33m/s | 0.33m/s |
| Inflow Air Velocity | 0.55m/s | 0.55m/s | 0.55m/s | 0.55m/s |
| Front Window Opening Safe Height | 250mm | 250mm | 250mm | 250mm |
| Weight | 200-250kg | 200-250kg | 200-250kg | 200-250kg |
