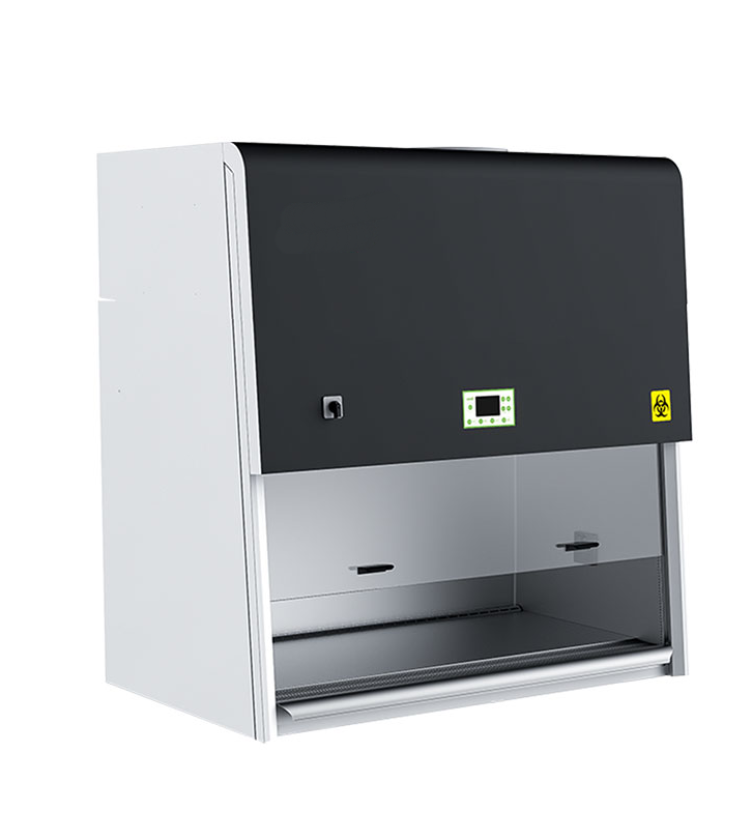

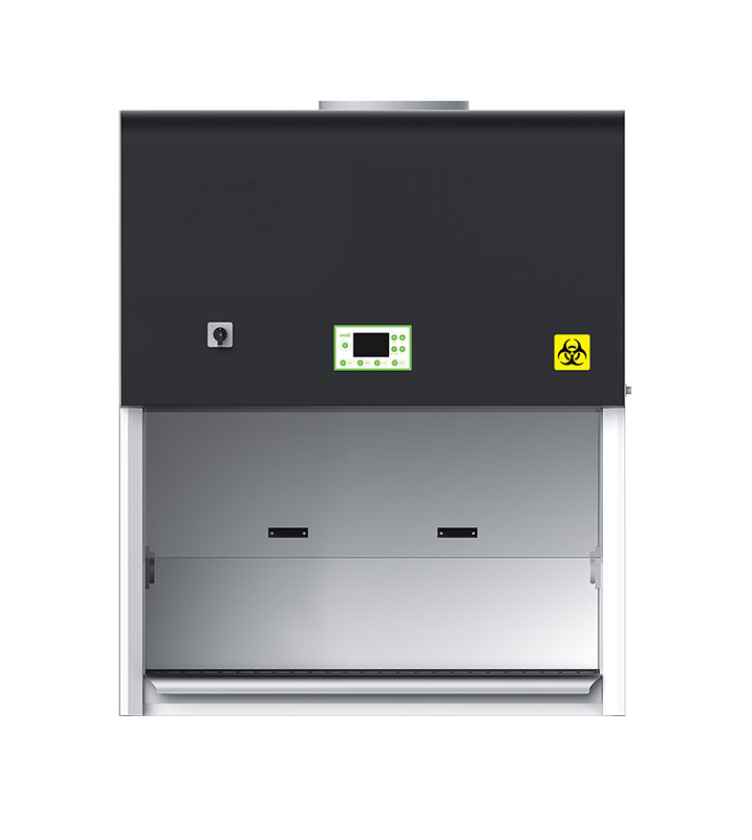

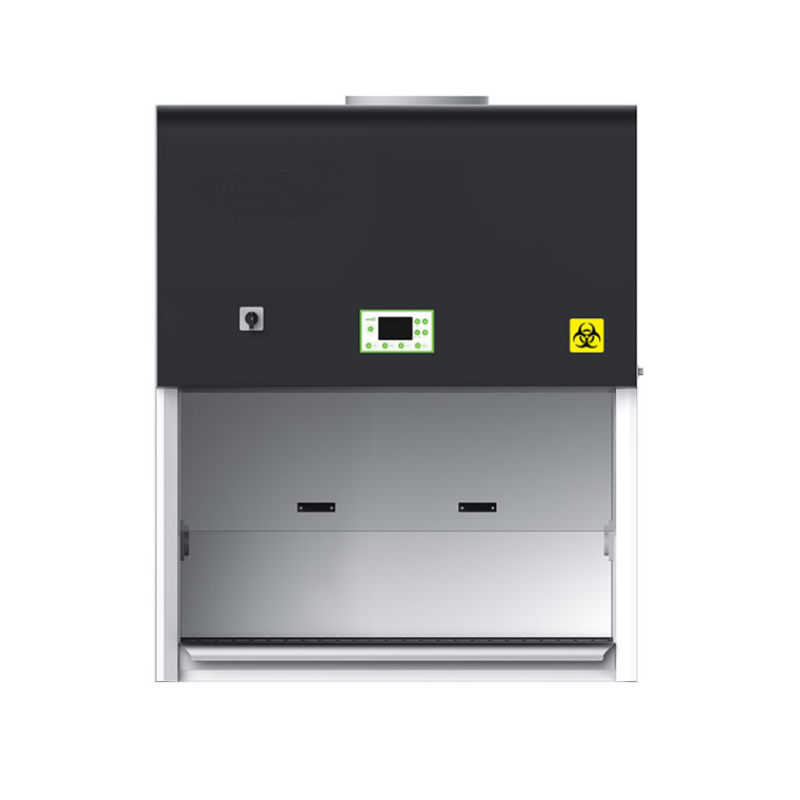

Biological Safety Cabinet DE Intelligent Grade B2

100% Exhaust & Application：Type B2 biological safety cabinets (Class II) ensure 100% outdoor exhaust (no recirculation), ideal for experiments with radioactive/toxic gases. Critical for biosafety in microbiology, biomedicine, and biotech.
Core Features：Equipped with HEPA filters (ISO5 cleanroom, 99.995%@0.3μm), 10″ smart touchscreen, auto-speed fan, patent adjustable damper. Real-time monitoring of filter/UV lifespan & equipment status.

Biological safety cabinets are designed to protect operators, laboratory environments, and experimental materials (e.g., primary cultures, viral strains, diagnostic specimens) from infectious aerosols and splashes during handling. Widely used in microbiology, biomedicine, genetic engineering, and biopharmaceuticals for research, teaching, and clinical testing, they are the most critical primary protective barrier for laboratory biosafety. Class II cabinets (most common) are further divided into Type A2 and Type B2.

Type B2 Biological Safety Cabinet Features

Type B2 cabinets feature 100% exhaust. Recommended for experiments involving potential radioactive/toxic gases (exhausts filtered air outdoors, no recirculation).
HEPA filter (ISO5 cleanroom class in work area, 99.995% efficiency @0.3μm)
Imported high-power fan + auto-speed adjustment (energy-efficient, extends filter lifespan)
10-inch smart touchscreen (full digital control, real-time monitoring)
Filter/UV lamp lifespan display + alarm
Real-time status monitoring (filters, fan)
5° tilted cabinet (reduces glare, ergonomic comfort)
Patent adjustable damper (stable exhaust airflow, Patent No.: 202123369276.1)
Full-steel structure + 3rd-gen antibacterial nano-coating
Fingerprint-resistant 304 stainless steel worktop & one-piece inner liner
Optional external exhaust fan
Form caster base + threaded leveling feet

MODEL	BSC-940ⅡB2	BSC-1100ⅡB2	BSC-1350ⅡB2	BSC-1600ⅡB2
Overall Size (mm)	1490×800×2250	1650×800×2250	1900×800×2250	2160×800×2250
Work Area (mm)	940×650×660	1100×650×660	1350×650×660	1600×650×660
Inflow Airflow	372m³/h	435m³/h	535m³/h	634m³/h
Downflow Airflow	720m³/h	843m³/h	1034m³/h	1226m³/h
Total Airflow	1092m³/h	1278m³/h	1569m³/h	1860m³/h
Noise	≤59dB(A)	≤59dB(A)	≤61dB(A)	≤61dB(A)
Downflow Velocity	0.33m/s	0.33m/s	0.33m/s	0.33m/s
Inflow Velocity	0.55m/s	0.55m/s	0.55m/s	0.55m/s
Front Window Safe Height	200mm	200mm	200mm	200mm
Weight	260-320kg	260-320kg	260-320kg	260-320kg

Description

MODEL	BSC-940ⅡB2	BSC-1100ⅡB2	BSC-1350ⅡB2	BSC-1600ⅡB2
Overall Size (mm)	1490×800×2250	1650×800×2250	1900×800×2250	2160×800×2250
Work Area (mm)	940×650×660	1100×650×660	1350×650×660	1600×650×660
Inflow Airflow	372m³/h	435m³/h	535m³/h	634m³/h
Downflow Airflow	720m³/h	843m³/h	1034m³/h	1226m³/h
Total Airflow	1092m³/h	1278m³/h	1569m³/h	1860m³/h
Noise	≤59dB(A)	≤59dB(A)	≤61dB(A)	≤61dB(A)
Downflow Velocity	0.33m/s	0.33m/s	0.33m/s	0.33m/s
Inflow Velocity	0.55m/s	0.55m/s	0.55m/s	0.55m/s
Front Window Safe Height	200mm	200mm	200mm	200mm
Weight	260-320kg	260-320kg	260-320kg	260-320kg
