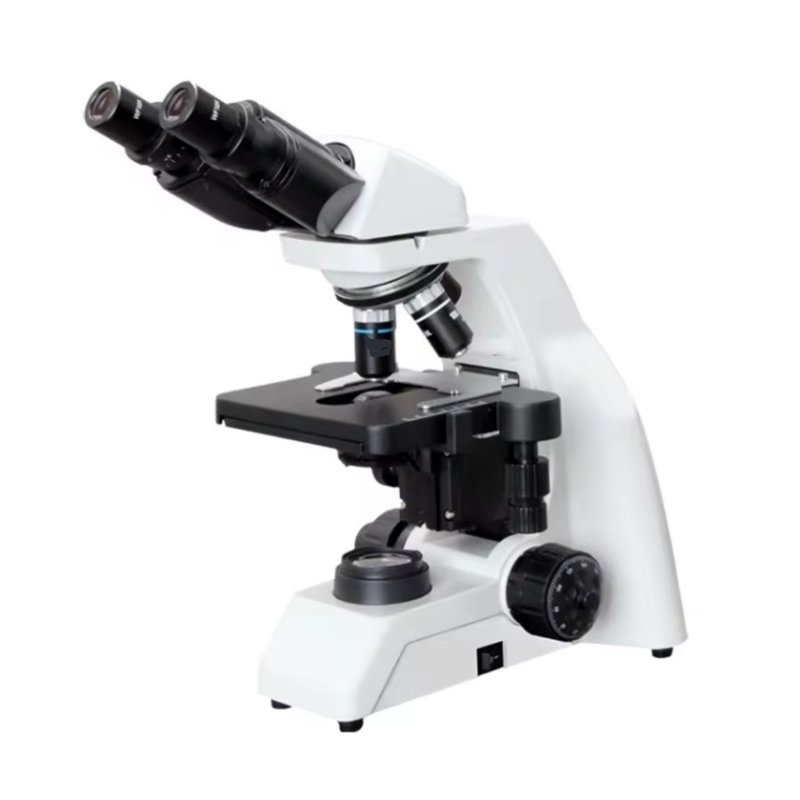

Biological Microscope QS AX-126
The AX-126 series (A/C/D) shares an Infinity Optical System for exceptional imaging, paired with infinity semi-planar field objectives (4× to 100×, NA 0.1–1.25) and 10× (20mm field) eyepieces.
All models feature a 4-hole inward converter, Abbey condenser (NA1.25), and coaxial focusing (0.002mm micro-adjustment), ensuring precision. The double-deck platform (150×139mm, 75×32mm travel) with a synchronous belt structure enhances stability.
Boasting an integrated, space-saving structure with anti-mould protection (suitable for high humidity), the series ensures long-term reliability.
Technical Specifications
- Superior optical performance provides excellent quality images.
- The scientific and solid integrated mirror structure design saves limited laboratory space; effective anti-mould design, even in high temperature and high humidity environment, can be assured of long years of use.
- Low front coarse micromotion operation is ergonomic and minimises user fatigue.
Category | Specific Configuration | AX-126 | AX-126C | AX-126D |
|---|---|---|---|---|
Optical System | Infinity Optical System | ● | ● | ● |
goggles | WF10x/20 | ● | ● | ● |
observation lens | Hinged binocular barrel, 30° inclination, pupil distance47-78mm | ● | ||
observation lens barrel | Hinged trinocular barrel, 30° inclination, pupil distance47-78mm | ● | ||
observation lens barrel | Digital observation lens barrel, 30° tilt, pupil distance47-78mm, 5 megapixels, WlFl support | ● | ||
Infinity semi-planar field objective | 4XNA=0.1 WD=16.8 | ● | ● | ● |
Infinity semi-planar field objective | 10XNA=0.25 WD=5.8 | ● | ● | ● |
Infinity semi-planar field objective | 40 XNA=0.65 WD=0.43 | ● | ● | ● |
Infinity semi-planar field objective | 100xNA=1.25 WD=0.13 | ● | ● | ● |
resolver | Double-deck movable platform, dimensions 150 x139mm, range of movement 75 x 32 mm, synchronous beltstructure | ● | ● | ● |
terrace | Double-deck movable platform,dimensions 150 x139mm, range of movement 75 x 32 mm, synchronous beltstructure | ● | ● | ● |
spotting scope | Abbey spotting Scope NA1.25 | ● | ● | ● |
spotting scope | Darkfield spotting scopes (dry, oil) | |||
focusing system | Coarse micromotion coaxial focusing, micromotion0.002mm/grid, lift range 25mm, | ● | ● | ● |
Lighting systems | 6V20W Halogen Lamp | character used in Taiwan asa substitute for a real name | character used in Taiwan asa substitute for a real name | character used in Taiwan asa substitute for a real name |
Lighting systems | S-LED Lighting | ● | ● | ● |
Lighting systems | S-LED Rechargeable | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name |
Lighting systems | Kohler Lighting | ● |
