Biological Microscope QS AX-100
All AX-100 models (A/B/C) share a 160mm Limited Teleoptics system, 10× (18mm field) eyepieces, and a 4-hole outward converter.
Equipped with an Abbey condenser (NA1.25), coaxial focusing (0.0018mm fine adjustment), and a 146×135mm dual mobile platform (76×51mm travel), they deliver reliable microscopy with 3W LED illumination—ideal for basic to advanced lab use.
Category | Specific Configuration | AX-100A | AX-100B | AX-100C |
|---|---|---|---|---|
optical system | Limited Teleoptics 160mm | ● | ● | ● |

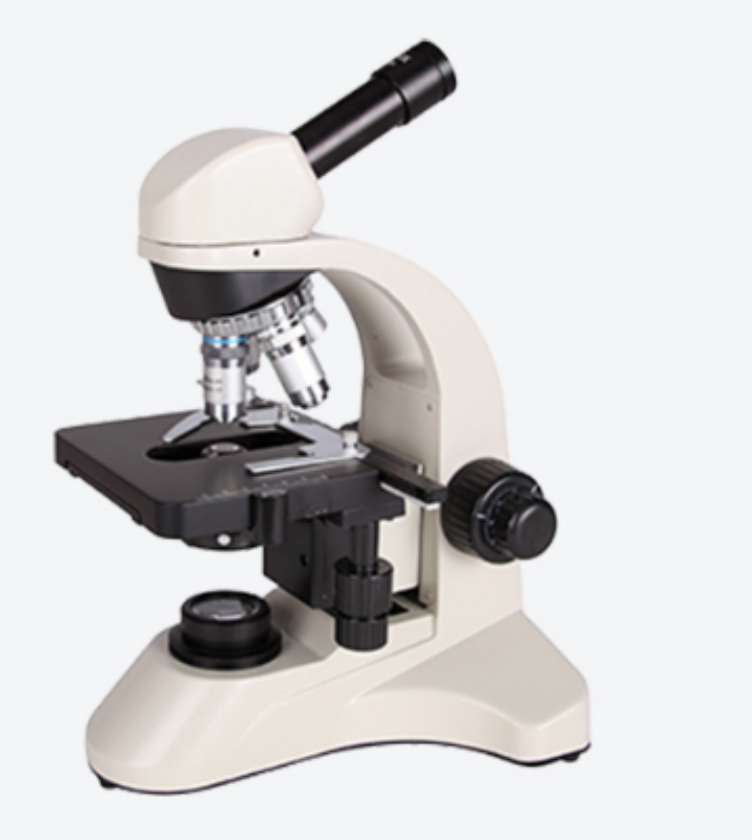

viewing head | Monocular viewing head, 45 tilt, 360° swivel | ● | ||

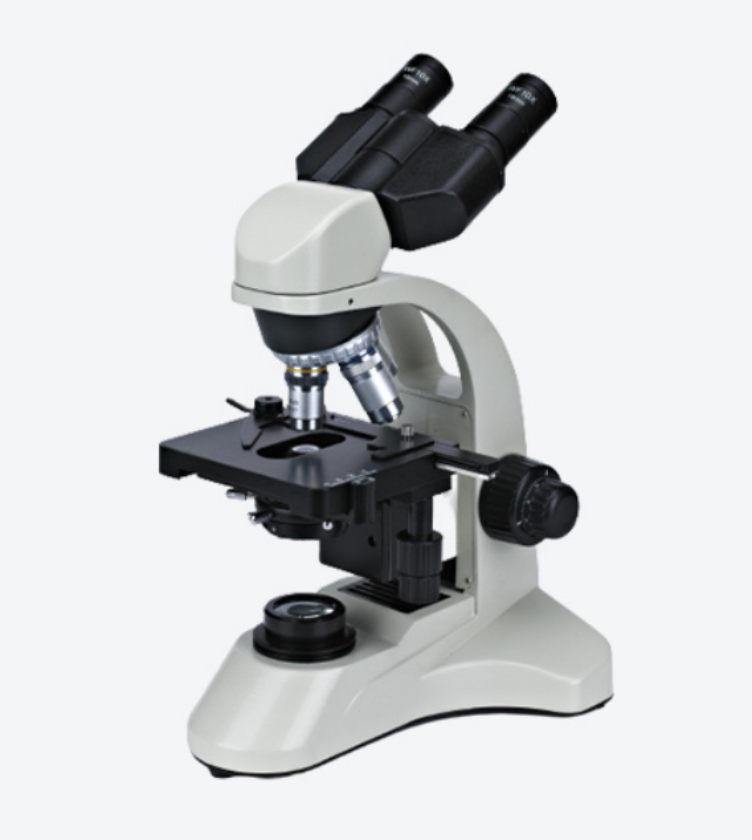

viewing head | Hinged binocular head, 30 degree tilt, pupildistance 48mm-75mm | ● | ||
viewing head | Hinged trinocular head, 30 degree tilt, pupildistance 48mm-75mm | ● | ||
goggles | Large Field Eyepiece WF10X/18mm | ● | ● | ● |
goggles | Large Field Eyepiece WF16X/13mm | character used in Taiwanas a substitute for a real name | character used in Taiwanas a substitute for a real name | character used in Taiwanas a substitute for a real name |
objective (optics) | Finite Distance 195 Series Achromatic ObjectiveLenses 4X 10X 40Xs 100Xs(oil) | ● | ● | character used in Taiwanas a substitute for a real |
objective (optics) | Limited Distance 195 Series High Contrast FlatField objective 4X 10X 40Xs 100Xs(oil) | character used in Taiwanas a substitute for a real name | character used in Taiwanas a substitute for a real name | ● |
resolver | Outward-facing four-hole converter | ● | ● | ● |
resolver | Outward facing 5-hole converter | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name | character used in Taiwan as a substitute for a real name |
spotting scope | Abbey spotting scope NA1.25 with variable light bar | ● | ● | ● |
focusing system | Coaxial coarse and fine adjustment mechanism,fine adjustment grid value 0.0018mm, coarse travel36mm per revolution | ● | ● | ● |
litter-bearing platform | Dual mobile platform Dimensions 146x135mm,range of movement 76mmx51mm | ● | ● | ● |
illumination | Built-in lighting system 3W/LED lighting | ● | ● | ● |
6v 20W halogen lamp, brightness adjustable | character used in Taiwanas a substitute for a real name | character used in Taiwanas a substitute for a real name | character used in Taiwanas a substitute for a real name | |
Product unit size | 30x20x38cm | ● |
