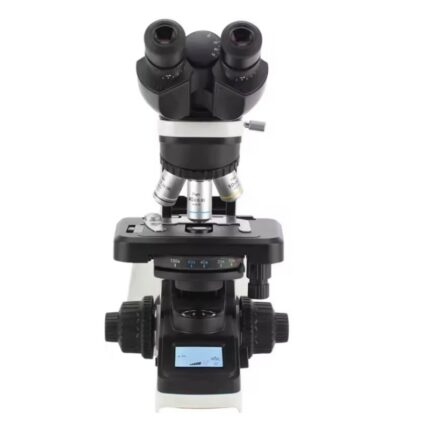

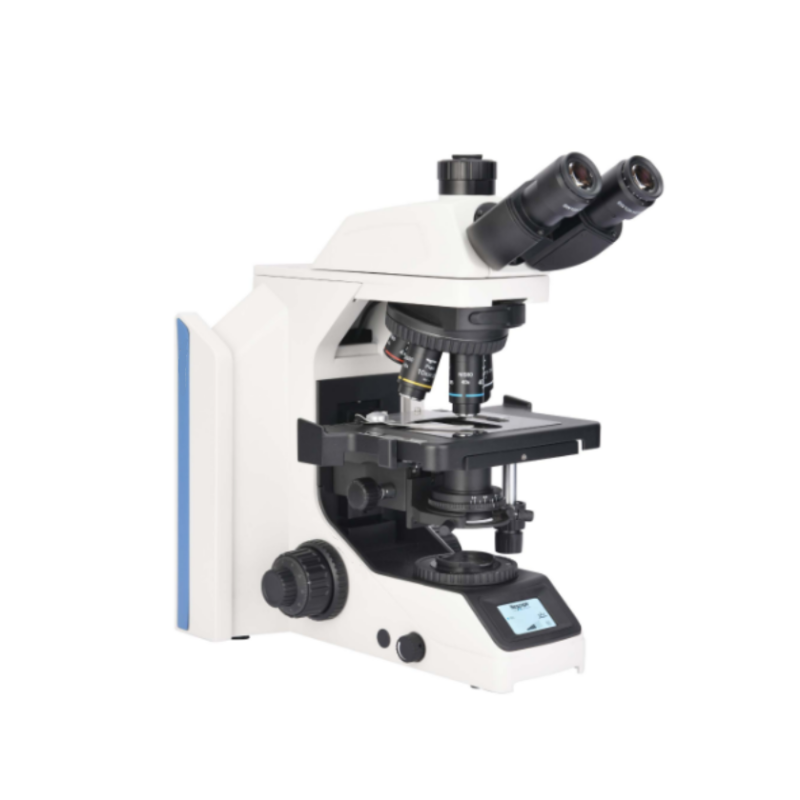

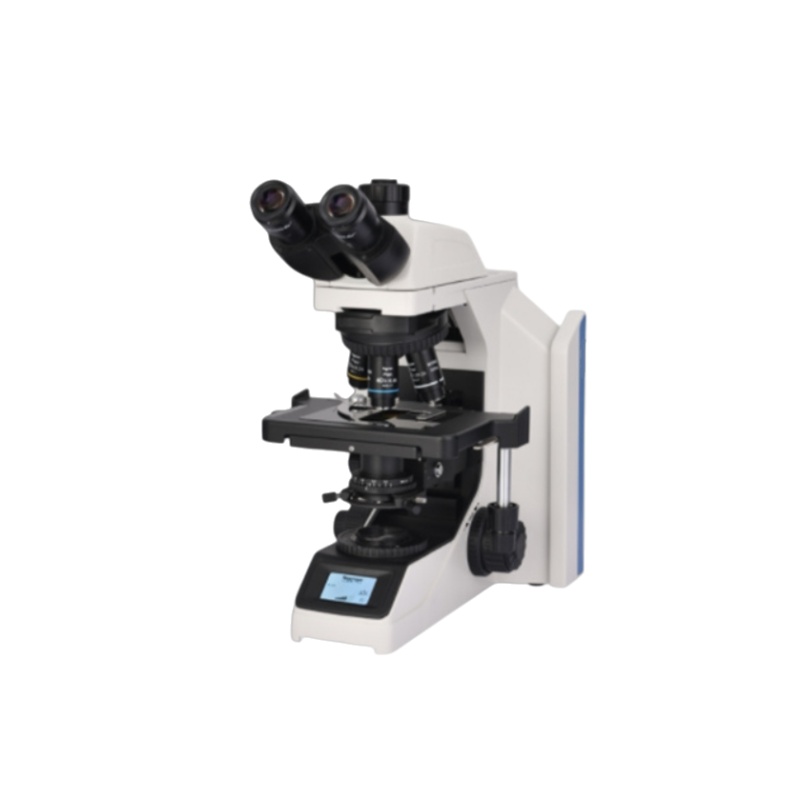

Biological Microscope QS AO-700
The AO-700 series microscopes feature an Infinity Optical System for realistic imaging, paired with 10× (22mm field of view) eyepieces (±5 diopter adjustment) and versatile objectives—including infinite flat-field achromatic, phase contrast, and fluorescent options (4× to 100×).
A coded 5-hole converter ensures precise objective switching, ideal for professional laboratory observations.
Offers multiple viewing heads: 30° tilted binocular (360° rotatable), trinocular (with 50:50 or 100:0 spectral ratios), digital, or wireless WIFI heads, accommodating diverse workflows.
Technical Specifications
- AO-700 series microscopes are designed for professional laboratory microscopic observation. Realistic imaging, intuitive operation and comfortable to use
Category | Specific Configuration |
|---|---|
Optical System | Infinity Optical System |
Eyepiece (field of view) | 10×(22), visual degree adjustable -5~+5, interface Φ30 |
Observation Lens Barrel | 30° tilt, hinged binoculars, 360° rotation, pupil adjustment: 47~78mm |
Observation Lens Barrel | 30° tilt, hinged trinocular head, pupil distance adjustment: 47~78mm, fixed spectral ratio R:T=50:50 |
Observation Lens Barrel | 30° tilt, hinged trinocular head, pupil distance adjustment: 47~78mm, spectral ratio R:T=100.0/100.0 |
Observation Lens Barrel | 30° tilt, digital viewing head, pupil distance adjustment 47mm-78mm |
Observation Lens Barrel | 30° tilt, wireless WIFI digital viewing head, pupil distance adjustment 47mm-78mm |
Objective (Optics) | Infinite flat-field achromatic objectives (4×, 10×, 20×, 40×, 100×) |
Objective (Optics) | Infinite flat-field phase contrast objectives (10×, 20×, 40×, 100×) |
Objective (Optics) | Infinite flat-field semi-complex achromatic fluorescent objective (4×, 10×, 20×, 40×, 100×) |
Resolver | Coded 5-hole converter |
Terrace | Synchronous belt platform, area 235 x 150 mm, travel range 78 mm x 54 mm, hard-oxidised platform surface, exchangeable for toughened glass surface or sapphire surface |
Spotting Scope | Abbe concentrator (NA0.9) with variable aperture diaphragm |
Spotting Scope | Swing-out achromatic condenser (NA 0.9/0.25) with variable aperture diaphragm |
Spotting Scope | NA1.25 Plug-in turntable lining device |
Spotting Scope | NA1.3~1.26 Oil Darkfield Spotting Mirror |
Spotting Scope | NA0.7~0.9 Dry dark field spotting mirror |
Illumination | Transmission: 3W colour temperature adjustable LED lamp (LCD display multiplier, timer sleep, brightness indication and lock, etc.) |
Relay Mirror | 1X, 0.5X Video Attachment, Focusable |
Polariser | Simple offset detection and lifting device |
