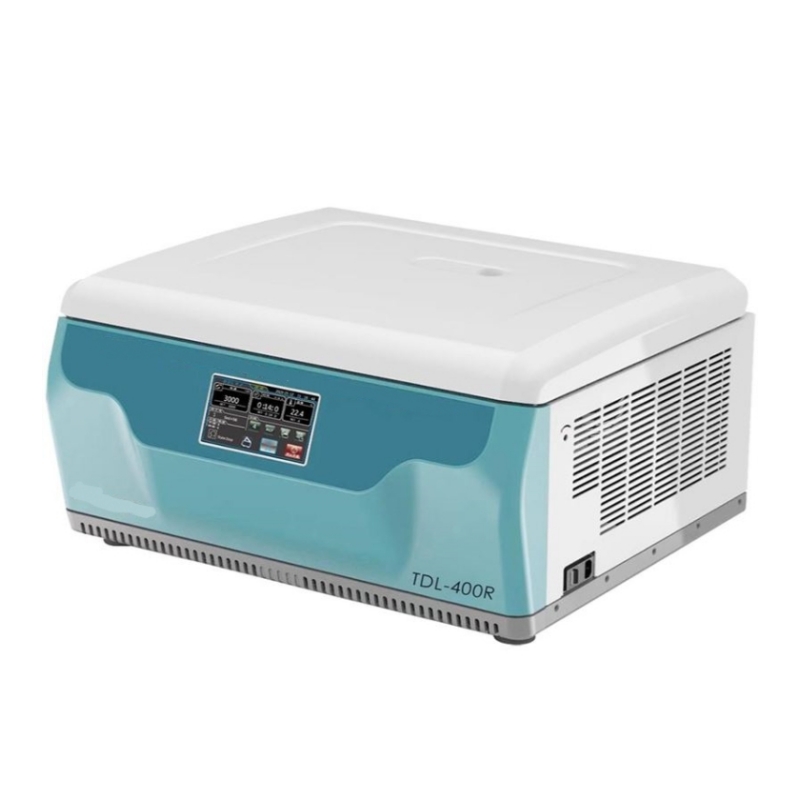

Benchtop Low-Speed Refrigerated Centrifuge BO TDL-400R
The TDL – 400R benchtop refrigerated centrifuge excels in biomacromolecule separation, boasting a 6000rpm max speed (5200×g RCF) and 500ml×4 capacity.
Powered by a maintenance – free AC brushless motor (with Hall speed sensing) and an Embraco compressor, it achieves-20℃~40℃ precise temp control (reaching 4℃ in 7 mins). Ideal for biotech/pharmaceutical labs, it supports 99 user – defined programs and real-time parameter adjustment—ensuring efficiency for large-volume sample processing.
Equipped with a 7-inch HD touchscreen (Chinese/English, password – protected), the TDL-400R simplifies workflow. Its 15-stage acceleration/deceleration, soft-brake, and 15g unbalance-tolerant spring system protect samples.
Technical Specifications
- Driven by an AC variable-frequency brushless motor, maintenance-free, equipped with a Hall speed measurement module;
- Microcomputer variable-frequency control system, with digital liquid crystal display showing the actual values and progress indicators of the operating status;
- 7-inch high-definition touch screen, supporting Chinese-English interface switching and having a screen password protection function;
- 99 sets of user-defined programs (10 preset program combinations);
- 15 levels of acceleration and deceleration, and soft-brake function to prevent sample resuspension;
- Adopt Embraco compressor unit, with dual-circuit design for refrigeration and heating, and fast cooling speed (reaching 4℃ in 7 minutes);
- ECO automatic start-stop function, with precise temperature control, energy-saving and environmental protection;
- Parameters (rpm/rcf) can be changed at any time during operation without stopping the machine;
- Micro-motor double-suction electronic door lock to ensure the safe operation of the machine;
- After centrifugation, the centrifuge cover can be opened automatically or manually for easy sample loading and unloading;
- Adopt a spring-suspended balance system, with an unbalance capacity of up to 15 grams.
PARAMETER NAME | PARAMETER VALUE |
|---|---|
MAXIMUM SPEED | 6000R/MIN |
Maximum Capacity | 50ml×6 pieces |
Maximum Relative Centrifugal Force | 5200Xg |
Timing Range | 1s~99min59s |
Temperature Control Range | -20℃~40℃ ±1℃ |
Noise | ≤60DB (A) |
CONTROL SYSTEM | VARIABLE-FREQUENCY PROCESSOR |
Drive System | AC Variable-frequency Motor |
Rotation Speed Accuracy | ±10rpm |
Overall Dimensions | 68×40×36cm |
Overall Weight | 40kg |
PARAMETER NAME | PARAMETER VALUE |
|---|---|
Maximum Centrifugal Force | 5200xg |
Typical Configuration | Horizontal Rotor Centrifuge |
Origin Category | Domestic |
Centrifugation Grade | Biomacromolecule |
Maximum Speed | 6000rpm |
Price Range | To be negotiated |
Application Field | Biological Industry, Pharmaceutical/Biopharmaceutical, Comprehensive |
Instrument Function | Refrigerated Centrifuge |
Instrument Type | Benchtop Centrifuge |
Size | 700×630×70mm |
Maximum Capacity | 500ml |
Feature Parameter | Low-speed |
