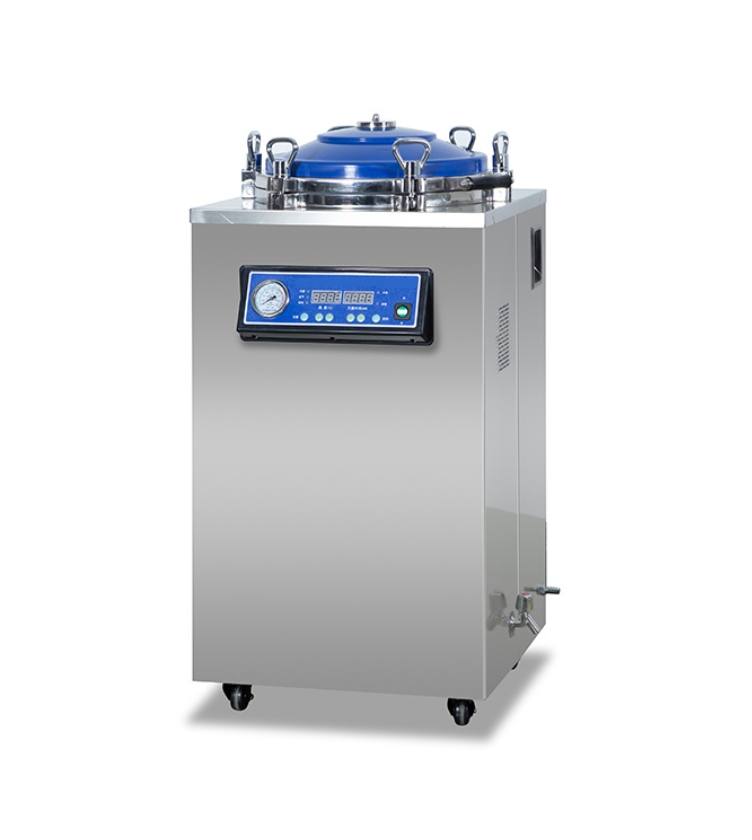

Automatic Digital Display Vertical Steam Sterilizer DGLS-B
-
Adopts a bolt structure and high-quality stainless steel material, with microcomputer automatic control for flexible sterilization parameter setting.
-
Equipped with digital display, touch buttons, and multiple automatic protections (over-temperature, over-pressure self-discharge, low water level, anti-dry burning) for safe operation.
-
Available in 35L-150L models (DGLS-35B to DGLS-150B) with power ranging 2.5kW-6.0kW (AC 220V/50Hz). Operates at 0.22MPa/134℃, with sterilization temperature (116℃-134℃) and time (4-120min) adjustable. Chamber volumes vary from Φ300x500mm to Φ500x780mm.
Description
Features
● Bolt structure
● High quality stainless steel material
● Microcomputer automatic control, arbitrary set of sterilization parameters
● Digital display and touch buttons
● Standard test interface
● The container with automatic protection function: over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning
● With stainless steel bucket or basket
● Buzzer reminder after sterilization, automatic stop
● Automatic cooling air, sterilization end automatic exhaust steam
Technical parameter
Technical parameter/Model | DGLS-35B | DGLS-50B | DGLS-75B | DGLS-100B | DGLS-120B | DGLS-150B |
Volume | 35L | 50L | 75L | 100L | 120L | 150L |
Power | 2.5kW | 3.5kW | 4.5kW | 4.5kW | 4.5kW | 6.0kW |
Voltage | AC 220V、50HZ | |||||
Rated working pressure | 0.22Mpa | |||||
Rated working temperature | 134℃ | |||||
Sterilization temperature setting range | 116℃~134℃ | |||||
Sterilization time setting range | 4~120 min | |||||
Chamber volume(mm) | Φ300×500 | Φ350×525 | Φ400×625 | Φ450×650 | Φ450×760 | Φ500×780 |
Bucket dimension(mm) | Φ280×400 | Φ330×460 | Φ380×560 | Φ420×540 | Φ420×660 | Φ470×720 |
Basket dimension(mm) | Φ320x240x2 | Φ360x280x2 | Φ410x300x2 | Φ410x350x2 | Φ460x350x2 | |
Outer dimension(mm) | 400x400x860 | 480x480x960 | 522x567x1020 | 555x555x1080 | 555x599x1200 | 605x649x1210 |
Packing size(LxWxH)(mm) | 550x500x1030 | 580x630x1100 | 630x680x1190 | 690x650x1230 | 690x650x1330 | 750x700x1370 |
Gross/net weight | 58/41KG | 75/53KG | 82/61KG | 103/78KG | 108/82KG | 116/90KG |
