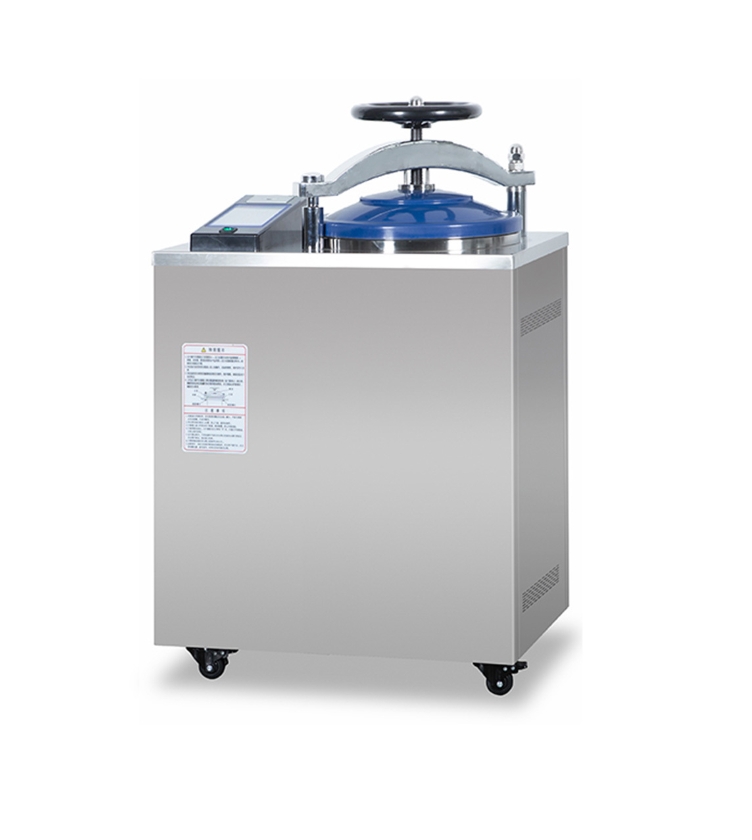

Automatic Digital Display Vertical Steam Sterilizer DGL-M series
-
Equipped with hand wheel quick-opening structure, three-time pre-vacuum, and high-quality stainless steel construction.
-
Features microcomputer control for adjustable sterilization parameters, LED touch screen, drying function, and multiple protections (over-temperature, over-pressure, low water level, anti-dry burning). Includes internal printer and external steam generator for enhanced efficiency.
-
Available in 35L-100L models (DGL-35M to DGL-100M) with 3.5-4.5kW power (AC 220V/50Hz). Operates at 0.22MPa/134℃, with sterilization temp (116-134℃), time (4-120min), and drying time (0-240min) adjustable.
Description
Features
● Hand wheel translation and quick opening structure
● Three times pre-vacuum
● High quality stainless steel material
● Microcomputer automatic control, arbitrary setting sterilization parameters
● Safety interlocking device
● LED touch screen display
● Standard test interface
● Self-expanding seal
● With drying function
● With stainless steel bucket or basket
● With automatic protection function:over temperature protection; over pressure self discharge protection; low water level protection; anti dry burning
● Automatic water
● External steam Generator
● Buzzer reminder after sterilization, automatic stop
● Automatic discharge of cold air, automatic steam exhaust after sterilization Internal printer
Technical parameter
| Technical parameter/Model | DGL-35M | DGL-50M | DGL-75M | DGL-100M |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220V、50HZ | |||
| Rated working pressure | 0.22Mpa | |||
| Rated working temperature | 134℃ | |||
| Sterilization temperature setting range | 116℃~134℃ | |||
| Sterilization time setting range | 4~120 min | |||
| Drying time setting range | 0~240 min | |||
| Chamber volume(mm) | Φ350×400 | Φ400×505 | Φ400×655 | Φ450×650 |
| Bucket dimension(mm) | Φ330×320 | Φ380×430 | Φ380×560 | Φ420×540 |
| Basket dimension(mm) | Φ320×350 | Φ360x280x1 | Φ360x280x2 | Φ410x300x2 |
| Outer dimension(mm) | 698x498x940 | 630x530x1180 | 630x530x1180 | 760x560x1260 |
| Packing size(LxWxH)(mm) | 790x610x1130 | 800x600x1230 | 840x610x1310 | 870x650x1380 |
| Gross/net weight | 130/115KG | 138/118KG | 150/124KG | 159/132KG |
