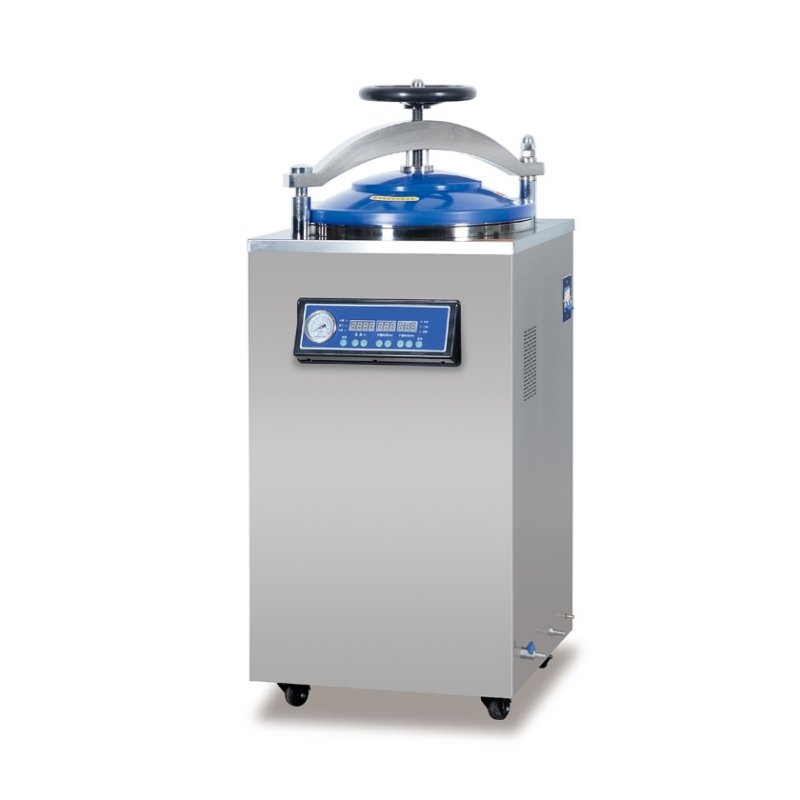

Automatic Digital Display Vertical Steam Sterilizer DGL-G series
-
Boasts hand wheel quick-opening structure, high-quality stainless steel build, and microcomputer control with adjustable sterilization parameters. Includes drying function, safety interlocks, digital display, touch buttons, and multiple protections (over-temperature, over-pressure, etc.).
-
Available in 35L-100L models (DGL-35G to DGL-100G). Operates at 0.22MPa/134℃, with sterilization temp (116-134℃), time (4-120min), and drying time (0-240min) adjustable. Power ranges 3.5-4.5kW, suitable for AC 220V/50Hz.
-
Features automatic cold air/steam discharge, buzzer alerts post-sterilization, and comes with stainless steel bucket/basket. Optional external printer and automatic water filling for enhanced usability.
Description
Product Features：
● Hand wheel translation and quick opening structure.
● High quality stainless steel material.
● Microcomputer automatic control, arbitrary setting sterilization parameters.
● Safety interlocking device.
● Digital display and Touch buttons.
● Standard test interface.
● Self-expanding seal.
● With drying function.
● With automatic protection function:over temperature protection; over pressure protection; low water level protection; anti dry burning.
● With stainless steel bucket or basket
● Buzzer reminder after sterilization, automatic stop.
● Automatic discharge of cold air,automatic steam exhaust after sterilization.
● Optional external printer
● Optional automatic water
Technical parameter
| Technical parameter | DGL-35G | DGL-50G | DGL-75G | DGL-100G |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kw | 3.5kw | 4.5kw | 4.5kw |
| Voltage | AC220V 50Hz | |||
| Rated working pressure | 0.22MPa | |||
| Rated working temperature | 134℃ | |||
| Sterilization temperature setting range | 116℃～134℃ | |||
| Sterilization time setting range | 4～120min | |||
| Drying time setting range | 0～240min | |||
| Chamber volume (mm) | Φ350*400 | Φ350*525 | Φ400*625 | Φ450*650 |
| Bucket dimension (mm) | Φ330*320 | Φ330*460 | Φ380*560 | Φ420*540 |
| Basket dimension (mm) | Φ320*350*1 | Φ320*240*2 | Φ360*280*2 | Φ410*300*2 |
| Outer dimension (mm) | 498*498*940 | 498*498*1100 | 570*570*1185 | 588*588*1255 |
| Packing size（L*W*H）(mm) | 580*630*1140 | 580*630*1240 | 620*670*1340 | 690*650*1400 |
| Gross/net weight (kg) | 85/74 | 105/82 | 121/90 | 128/102 |
