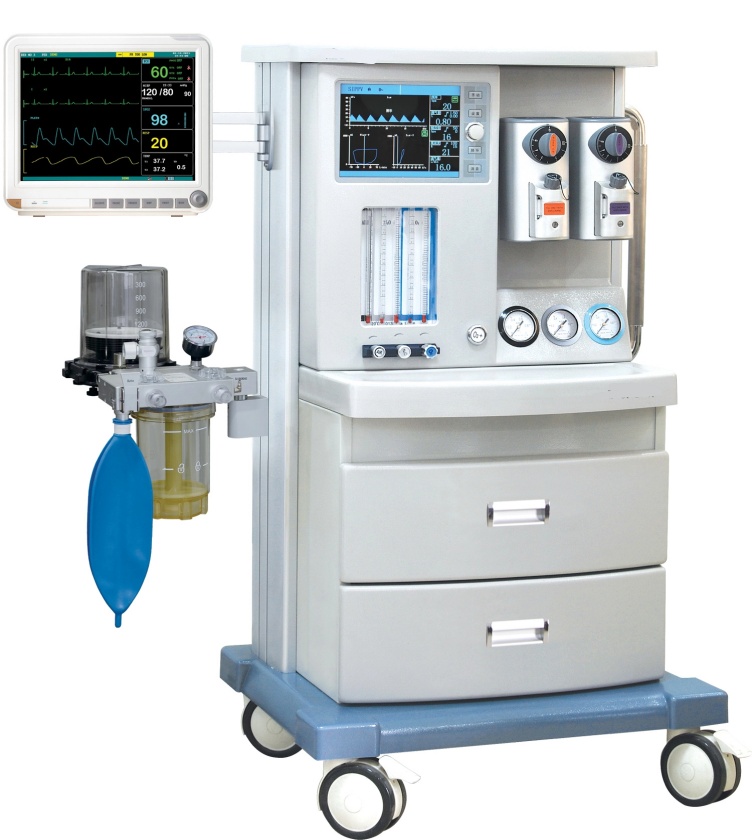

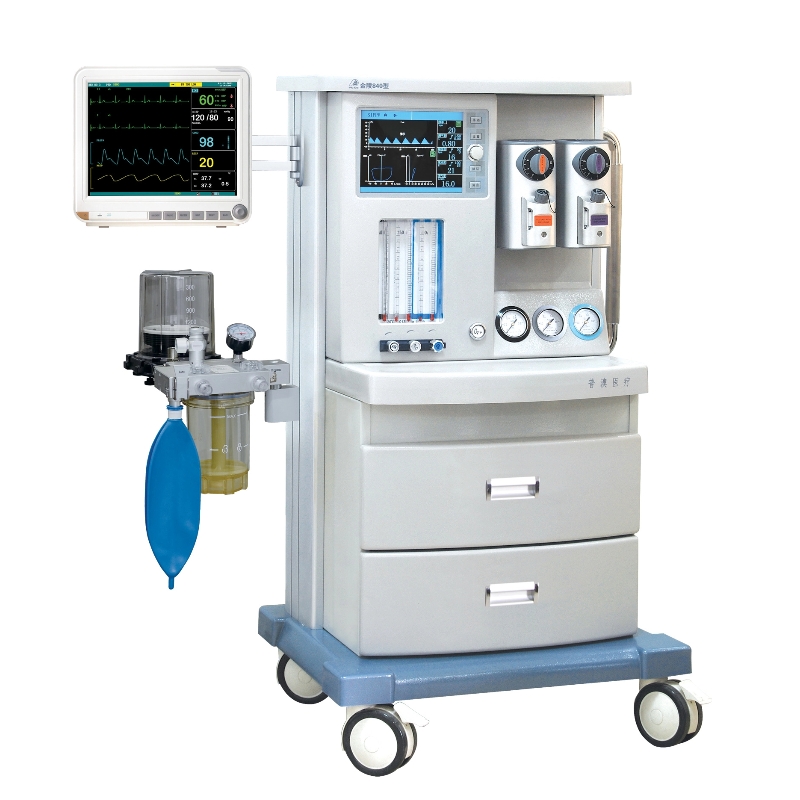

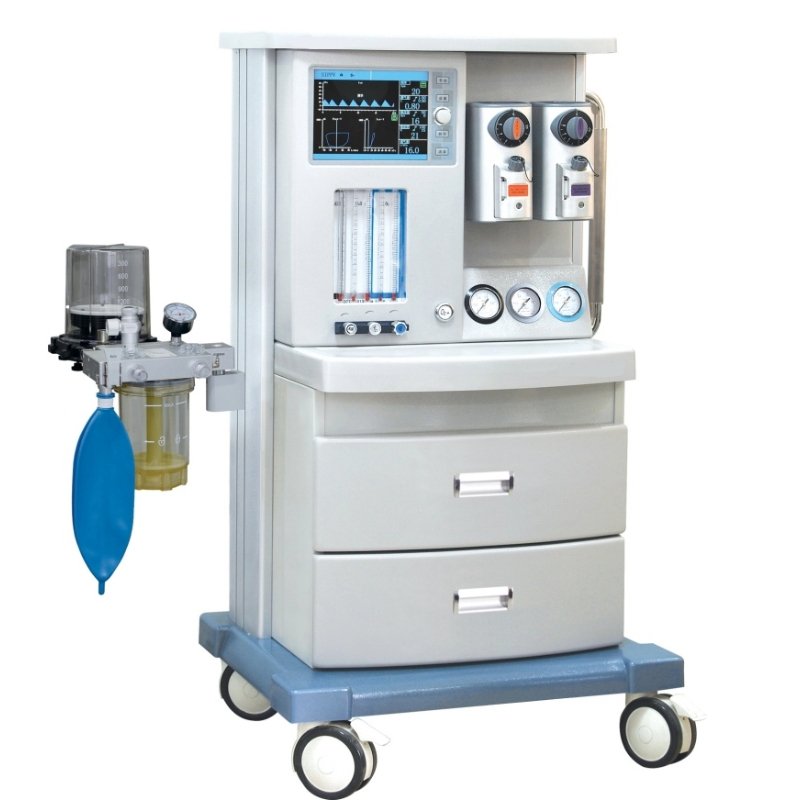

Anesthesia Machine PA 850

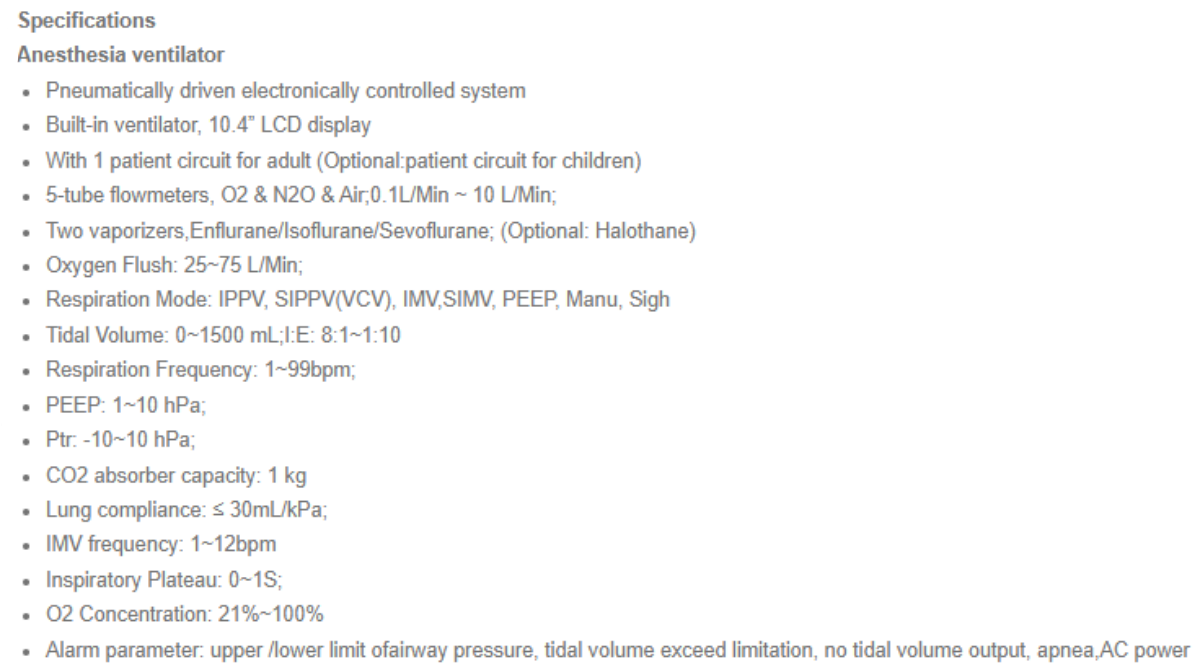

• Pneumatically driven electronically controlled system

• Built-in ventilator, 10.4” LCD display
• With 1 patient circuit for adult (Optional:patient circuit for children)
• 5-tube flowmeters, O2 & N2O & Air;0.1L/Min ~ 10 L/Min;
• Two vaporizers,Enflurane/Isoflurane/Sevoflurane; (Optional: Halothane)
• Oxygen Flush: 25~75 L/Min;
• Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh
• Tidal Volume: 0~1500 mL;I:E: 8:1~1:10
• Respiration Frequency: 1~99bpm;
• PEEP: 1~10 hPa;
• Ptr: -10~10 hPa;
• CO2 absorber capacity: 1 kg
• Lung compliance: ≤ 30mL/kPa;
• IMV frequency: 1~12bpm
• Inspiratory Plateau: 0~1S;
• O2 Concentration: 21%~100%
• Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power
• 12.1”TFT large screen of high resolution
• ECG: 5-lead, gain:×2.5mm/mV ×5.0mm/mV×10mm/mV ×20mm/mV, analysis of ST segment and abnormal of heart rate(anti-defibrillate, anti-HF electrotome)
• Heart Rate: 20~250bpm
• RESP: Impedance, range: 0~100bpm
• SpO2: 0%~100%
• Pulse Rate: 20~250bpm
• NIBP: SBP, DBP, MBP, 10~270mmHg interval ofautomatic measurement 1~90min adjustable
• TEMP: 0~50℃
• Alarm: Audio and visual alarm

Tendency record 96 hours

Loop part

Integrated design, integrated breathingcircuit

Evaporator

• High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane
• Concentration adjustment range: 0.5 ~ 5%VOL
• Evaporator flow, pressure, and automatictemperature compensation function

Self-locking feature

Configuration

• Vaporizer: Two vaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)
• Anesthesia gas concentration range: 0.5~5%
• Soda lime absorption system: resistance tohigh temperature of 176 degrees Celsius.
• ISO certificates approved
