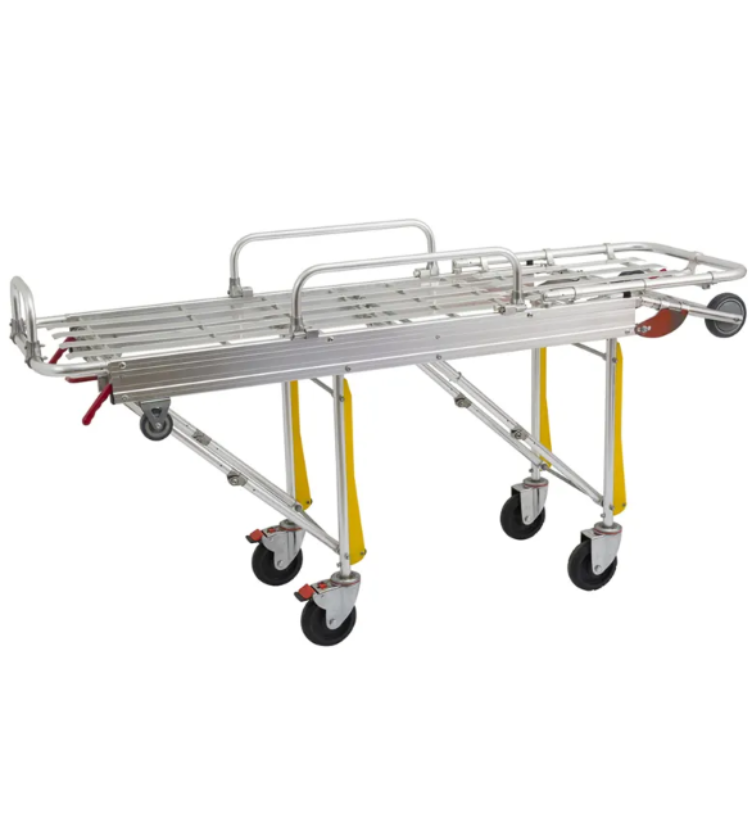

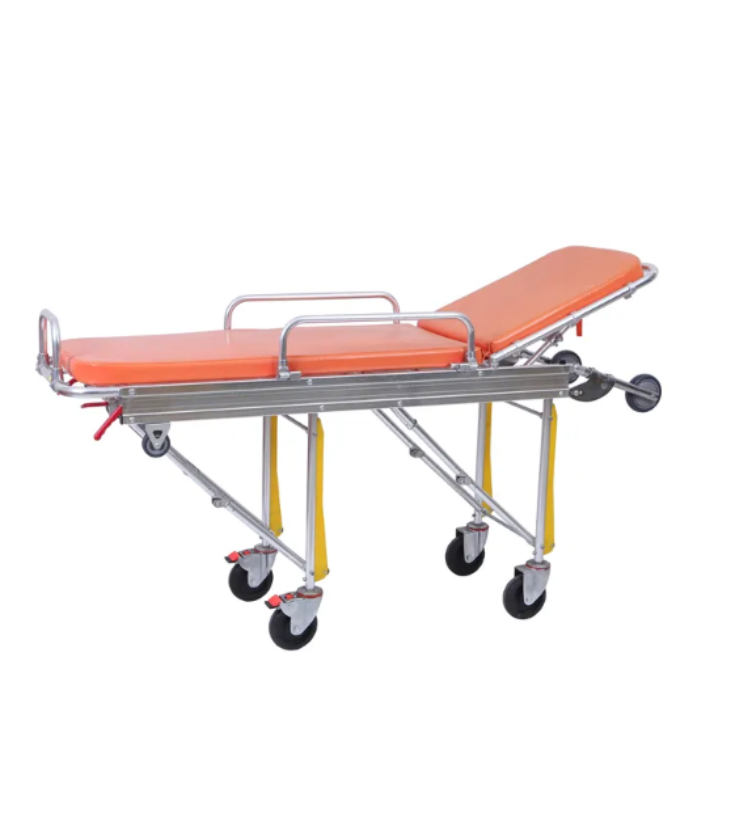

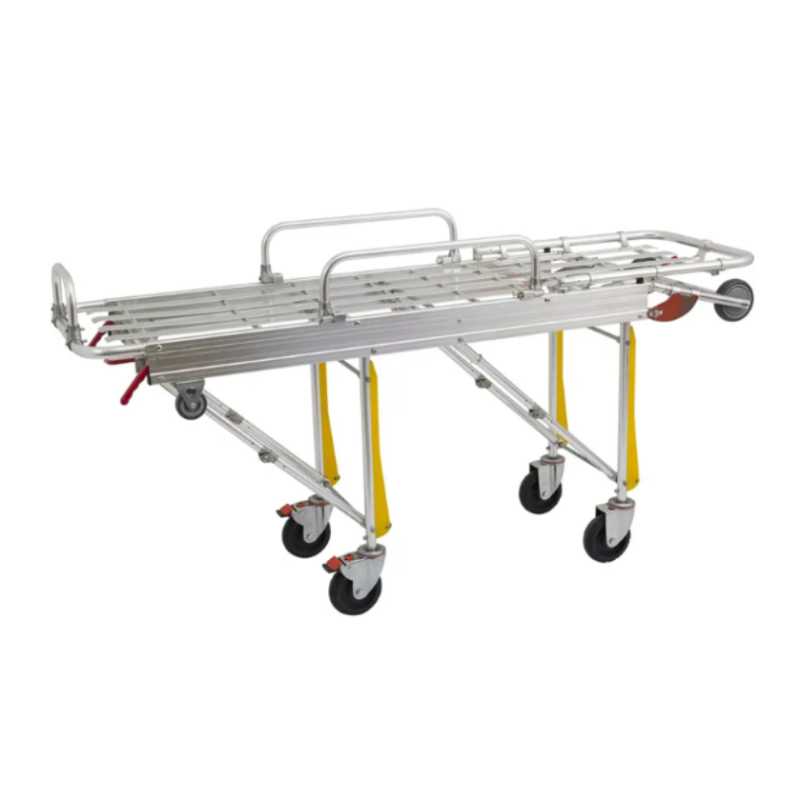

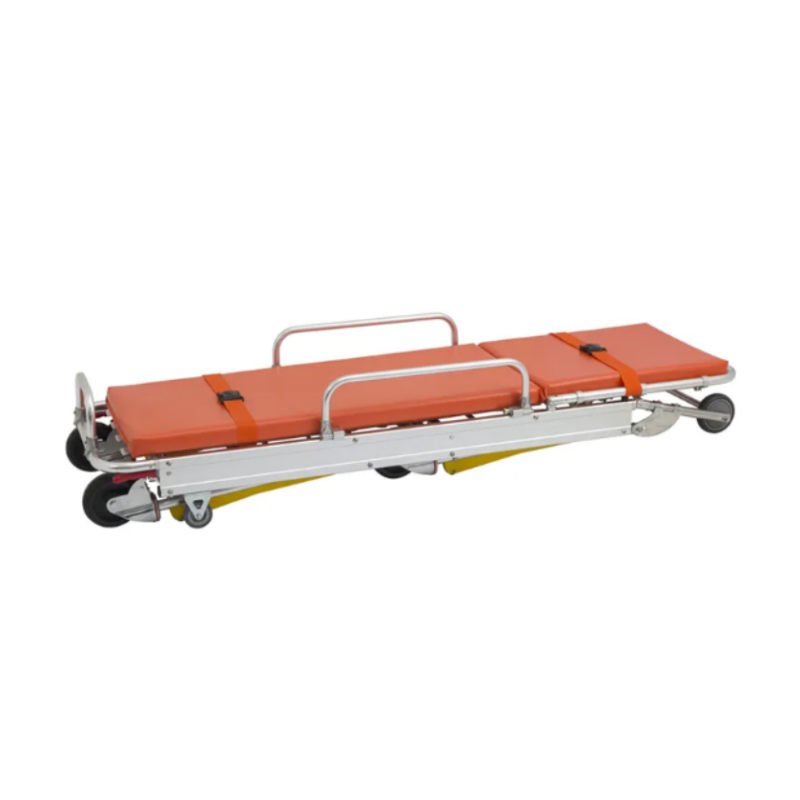

Ambulance Stretcher HR YHR-A2

  • High-strength aluminum alloy, 5cm flame-retardant waterproof mesh mattress, adjustable guardrails, 2 safety belts. Legs fold automatically (dual-handle control), 1-person operable.

  • Features: 0-75° backrest, 2-stage IV stand (max 75cm), 64cm loading height, φ125mm wheels, vehicle lock.

  • Specs: 190×55×(25-92)cm, max 160kg load. N.W.40kg, G.W.45kg, packed 195×62×26cm (1pc/CTN).

Description

Overview

1. The main material is high-strength aluminum alloy

2. Equipped with aluminium alloy adjustable guardrails and two safety belts

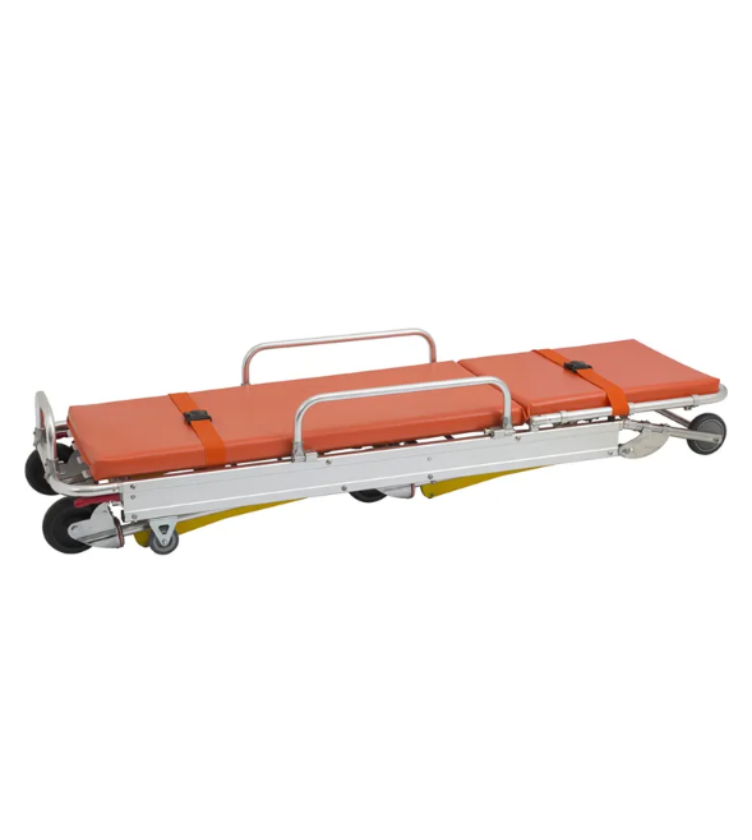

3. The stretcher legs fold automatically when being pushed into an ambulance,The folding mechanism of the leg part can be controlled by the handles on both sides,only one medical staff is needed to push the stretcher into the ambulance car.Make sure it is locked with the fixtures when loading onto the ambulance to prevent the stretcher from shaking during transportation

4. Adjustable backrest Angle

5. The mattress is made of wear-resistant mesh cloth,with a thickness of 5cm and disposable welding,flame retardant and waterproof

6. Equipped with adjustable two-stage I.V. stand,the maximum adjustable length is 75cm

7. Loading height:64cm

8. Wheel size:φ125mm

Model YHR-A2
Feature High-low position
5cm mattress,Two straps
Vehicle Locking Device Included
Swing-down side rails
Material Durable aluminum alloy
Dimension 190×55×(25-92)cm
Backrest 0-75 degree
Capacity Max.160kg (350 LBS)
N.W. 40kg
Packing 195×62×26cm ;1pc/CTN
G.W. 45kg
