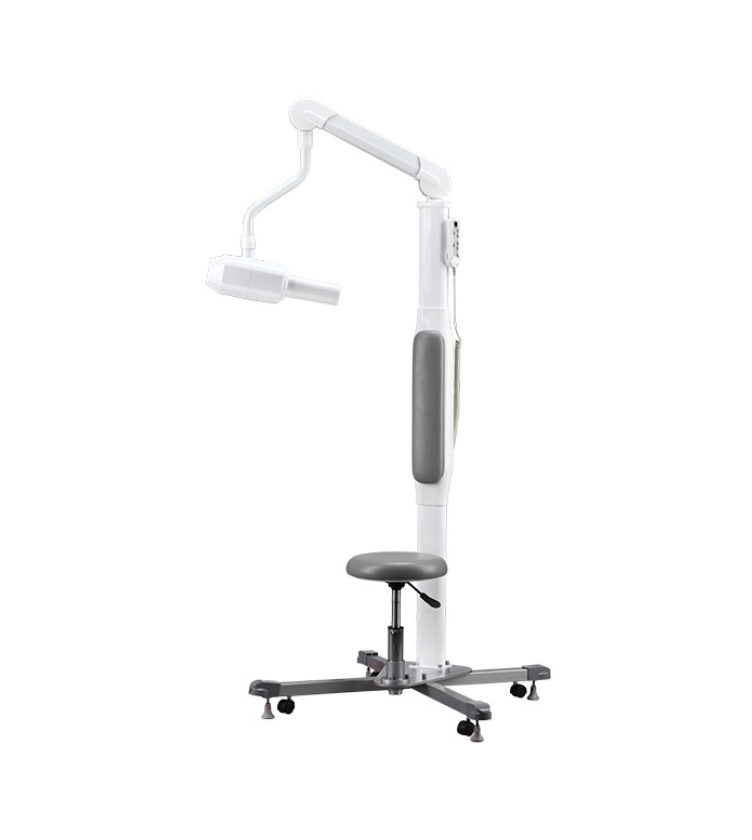

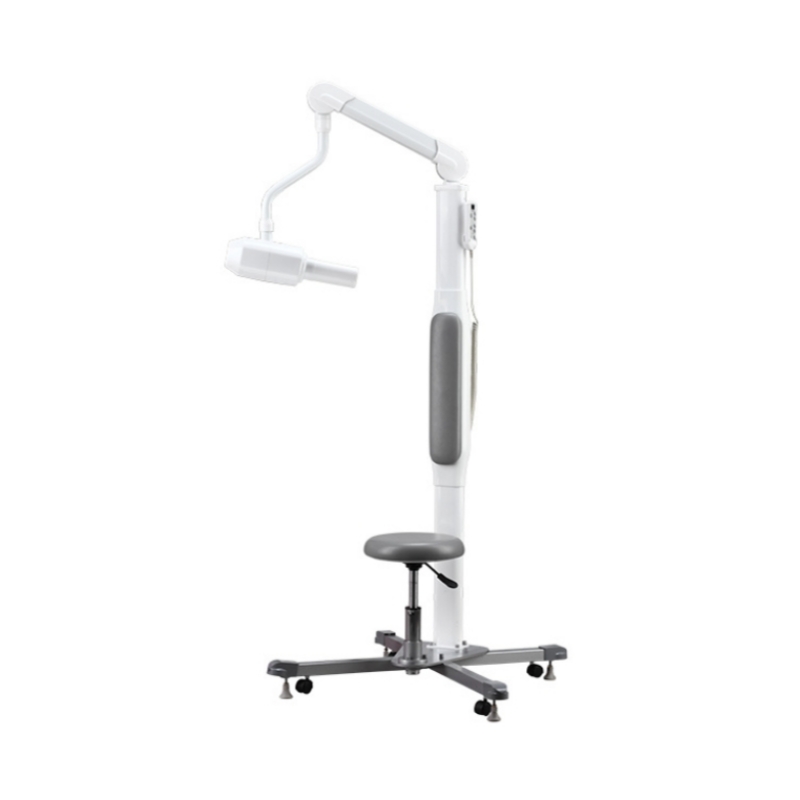

AC X-Ray Mobile Type Machine LY RAY68(M)

Fault code display with pre – set digital modes. Works with any brand’s sensors—future – proof your imaging system.
No voltage stabilizer needed. Japanese Canon generator ensures stable, fast – positioning operation.
Microprocessor – controlled 0.01s exposure. Low leakage radiation (≤0.14mGy/h)—safety and precision in one.

Product Introduction

ERROR CODE DISPLAY FUNCTION
Pre – set digital imaging modes with adjustable parameters provide the opportunity to use digital image systems, and it is compatible with digital imaging sensors from any brands.
EXCELLENT STABILITY
Stable operation, fast and accurate positioning, independent of fixed voltage, no need for voltage regulator.
CANON RADIATION GENERATOR IMPORTED
WITH ITS ORIGINAL PACKAGING FROM JAPAN.
PRECISE TIMING CONTROL
The unit incorporates microprocessor technologies to reach the exposure time precision of 1/100 seconds. Numerical displays indicate timely and correctly for any warnings or alarms.

Parameters Instruction
Power Voltage:AC 230V	Bulb Tube: Canon (Toshiba)	Duty Cycle:1/30
Frequency:50/60Hz	Ray Focal Spot:0.7mm	Half Value Layer:70Kv 1 .6mm Al
Maximum Power:900VA	Bulb Tube Voltage:70Kv±10%	Inherent Filtration:≥2.1mm Al
Electricity:4A	Anode Current:7mA±20%	Leakage Radiation:1meter≤ 0.14mGy/h
Fuse:6 .3A	Anode Angle:16°	Time Of Exposure:0.06—2.0s

AC X-Ray Mobile Type Machine LY RAY68(M)
