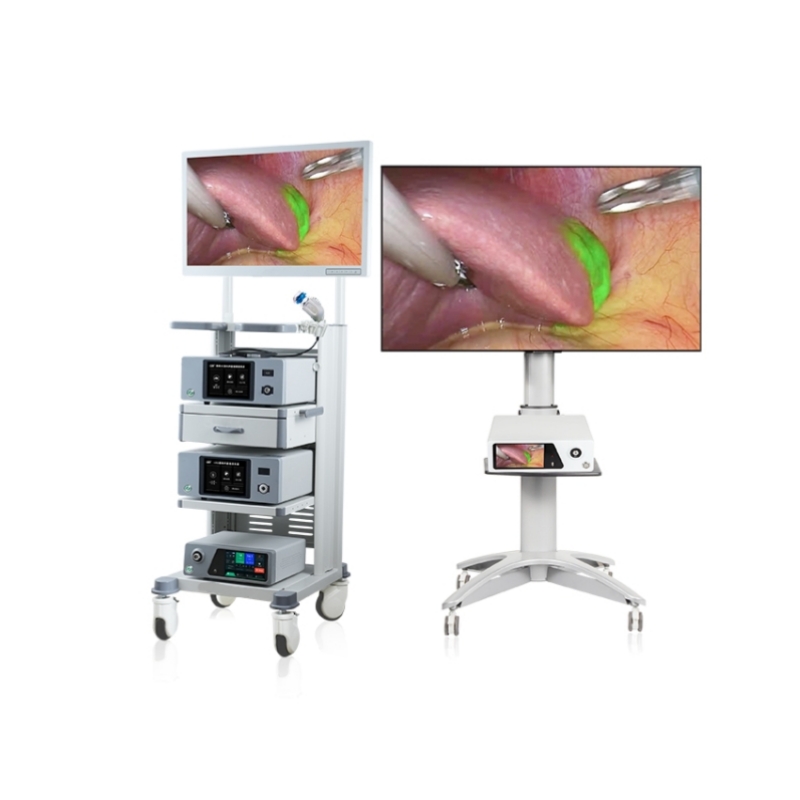

4K fluorescent endoscope camera system HH-01

4K fluorescent camera

1.  Connect to the 4K camera system host to achieve resolution ≥3840×2160 pixels (aspect ratio 16:9)
2.  Achieve excellent photosensitive performance and signal-to-noise ratio through 4K ultra-high-definition 4CMOS image sensor;
3. 4K dedicated optical lens connection to meet the needs of different surgeries;
4. It has electronic magnification function and can adjust the image size in real time through the buttons on the camera;
5.  The function of the camera button can be customized according to the surgeon's requirements, which is convenient for intraoperative use and can be used in various surgeries.

Multiple imaging modes:

4K fluorescence laparoscopy systems offer multiple imaging modes, including high-definition white light imaging, black and white fluorescence imaging, and green fluorescence imaging. These different modes give surgeons valuable information about tissue perfusion, lymphatic drainage, and abnormal tissue structures, enabling them to perform safer and more precise surgeries.

Camera Parameters

• Imaging Device: 9-megapixel 4CMOS image sensor
• Resolution: 4096(H) × 2160(V)
• Clarity: 2160 lines
• Minimum Illuminance: 0.5 Lux
• Output Signals: HDMI 2.0 / SDI (4K UHD output), DVI, USB 3.0 × 2, LAN
• Shutter Speed:
• NTSC: 1/60~1/60000
• PAL: 1/50 ~ 1/50000
• Camera Cable: 3m (custom lengths available upon request)
• Power Supply: AC 20/110V ±10%
• Languages: Switchable between Chinese, English, Russian, Japanese, and Spanish
• Signal-to-Noise Ratio: 50 dB
• Scanning System: Progressive scanning
• Storage: Internal hard disk or USB storage
• Application Scope: Thoracic surgery, urology, hepatobiliary surgery, gastrointestinal surgery, gynecology
