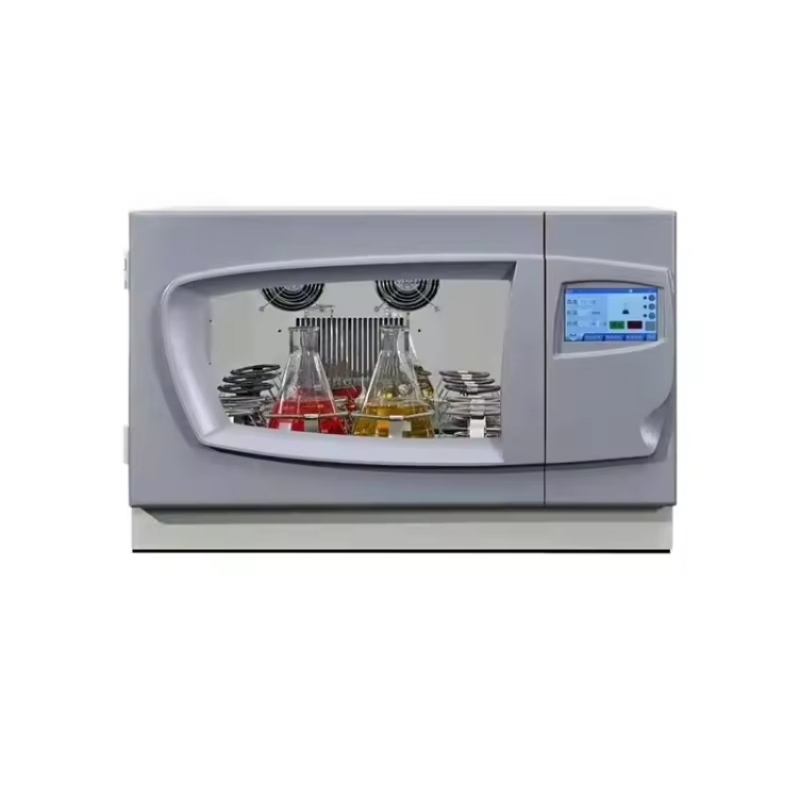

122L Stackable Horizontal Incubator Shaker LBA LJS-2020R
Description
OVERVIEW
FEATURES

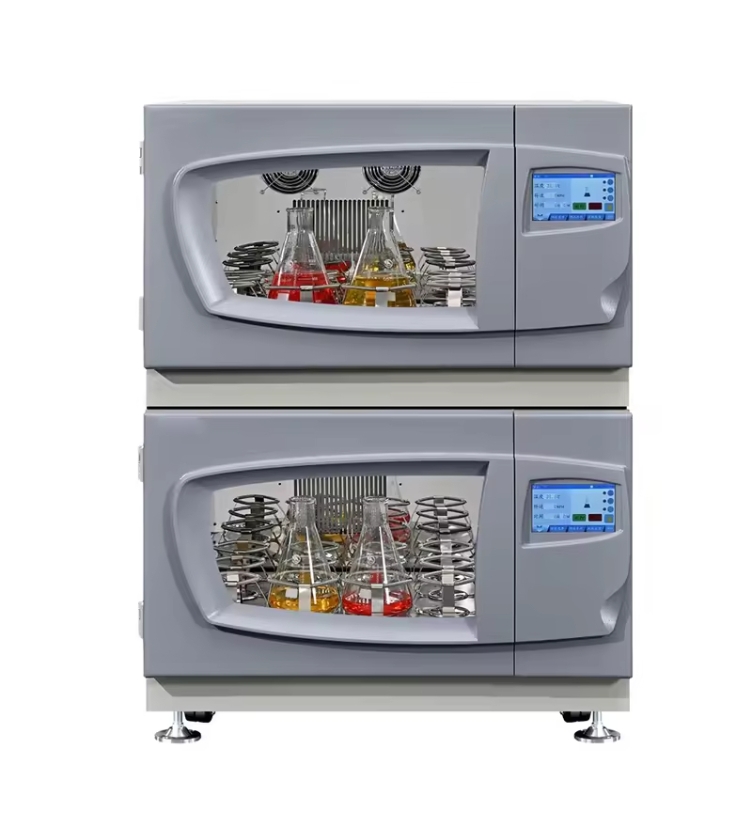

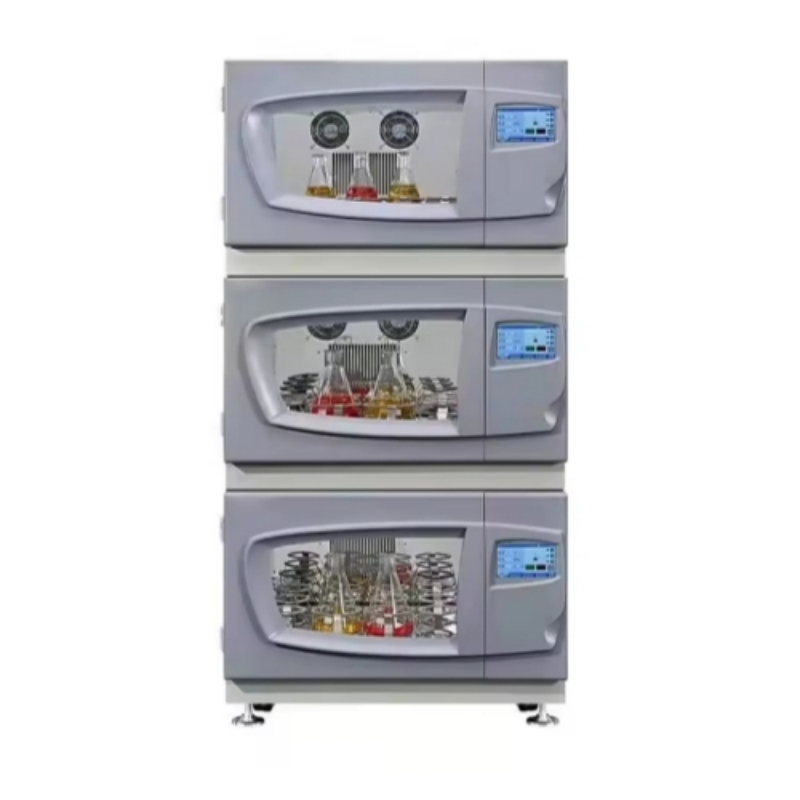

1. Up to three units are superimposed, can also be used and placed on table independently.
2. In order to improve the culture effect, it can be switched Reciprocating/ Orbital type.
3. 7-inch LCD colorful touch screen, easy to operate.
4. The front door design is more ergonomic and easier to operate.
5. 304 stainless steel mirror arc corners material in the working chamber.
6. Single-axis balanced drive technology, ultra-low noise.
7. Intelligent sound and light alarm environment scanning microprocessor controller.
8. Operating parameters are encrypted and locked to avoid human mis operation.
9. Running parameter memory function to avoid tedious operation.
10. High-quality variable frequency motor, low vibration, low noise, high efficiency, wide speed regulation, maintenance-free, energy-saving and long-lasting operation.
11. Over-temperature sound and light alarm function, motor overheating, temperature out of control, abnormal over-temperature instrument automatically cut off their respective power supply.
12. With power-off recovery function, the device can automatically resume operation according to the original set procedure after the external power supply suddenly loses power and then comes back on again.
13. The circuit for controlling acceleration ensures that the oscillator starts slowly, accelerates steadily, and ensures the safety of experimental samples.
14. The streamlined luxury machine shape with extremely aesthetic design concept, electrostatic color spray box, tempered double glass window.
SPECIFICATIONS
| Model | LJS-2020 | LJS-2020R |
| Control mode | P.I.D (Microcomputer environment scanning micro processing chip) | |
| Display mode | 7 inch true color touch screen | |
| Convection | Forced convection | |
| Oscillation mode | Reciprocating/ Orbital Switch | |
| Drive mode | Single-axis balanced drive | |
| Room temp | 15-35℃ | |
| Maximum stack | 3sets | |
| Curve programming | Repeat, pace, eight-segment curve programming | |
| Safety function | Upper and lower limit over-temperature sound and light alarm; upper and lower limit over-speed alarm; sensor fault identification, independent over-temperature protector, independent leakage or over-current protection, refrigerating machine over-charge protection | |
| Other function | Speed storage, automatic shutdown, temperature and speed correction, watchdog timer, clock display, Power failure recovery function, parameter memory, parameter encryption, one key to restore factory settings | |
| Cooling function | Air-cooled, 134a power controllable refrigeration frost-free operation | |
| Temp range | RT+5~60℃ | 4-60℃ |
| Temp accuracy | 0.1℃ | |
| Temp fluctuation | ≤±0.2℃ | |
| Temp uniformity | ≤±1℃ (at 37℃) | |
| Speed range | 10-300rpm | |
| Speed accuracy | ±1rpm | |
| Amplitude | 25mm | |
| Timer range | 0-999.59 | |
| Plate size | 542*445mm | |
| Plate quantity | 1pcs | |
| Max. capacity | 250ml*30 or 500ml*20 or 1000ml*12 or 2000ml*6 | |
| Net weight | 105kg | 120kg |
| Volume | 122L | |
| Inner size | 610*505*395mm | |
| Dimension | 910*710*630mm(one unit) | |
| Others | Lighting/ UV light | |
| Power | 600w | 800w |
| Voltage | AC 200~240V 50~60Hz | |
| Inner chamber material | 304 mirror stainless steel material | |
| External material | High-quality ductile iron, channel steel, angle steel, medium plate, cold rolled steel plate | |
