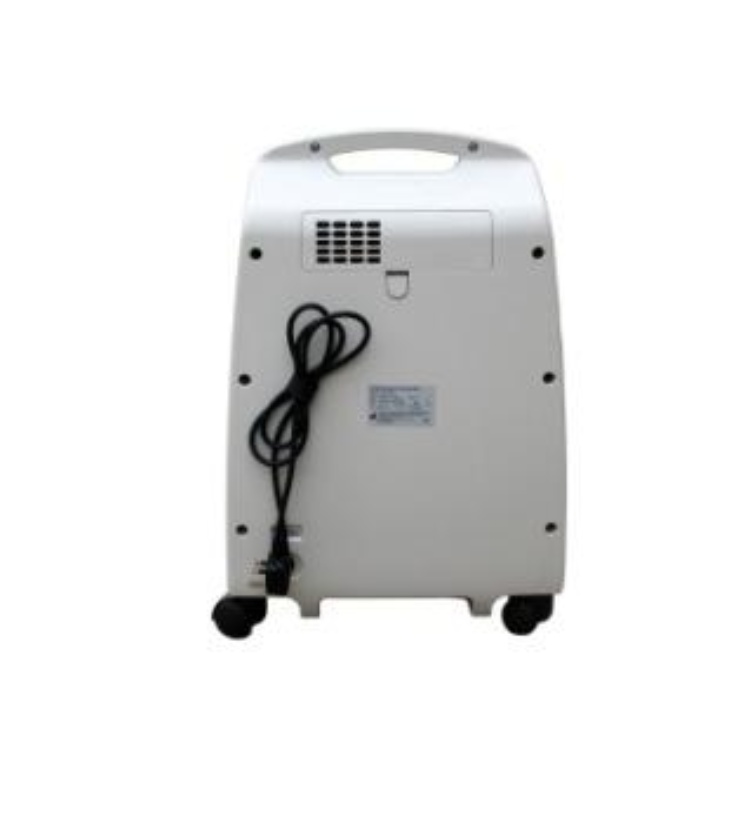

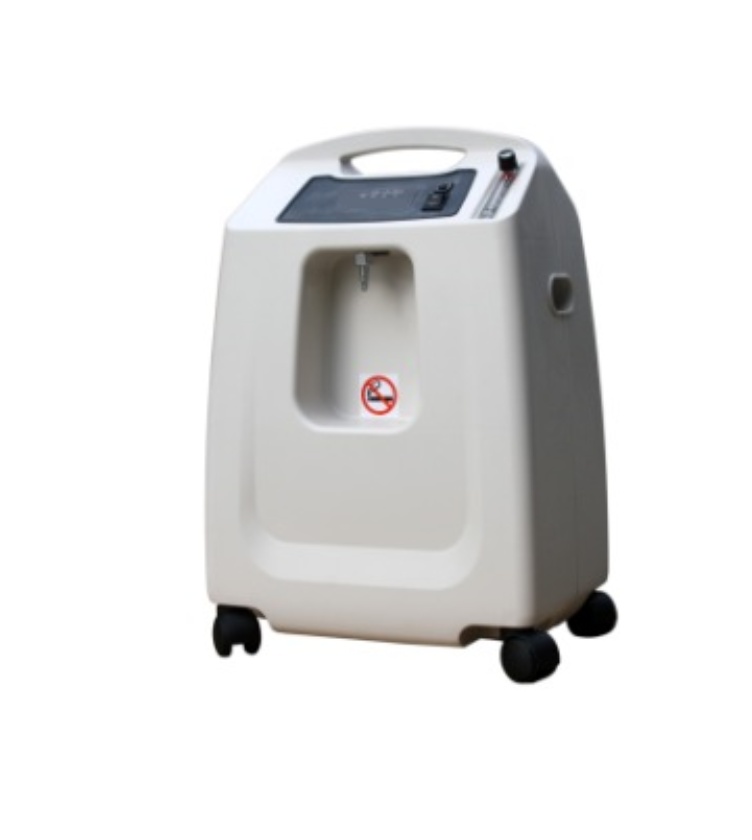

10L oxygen concentrator DM DO2-10AH
-
The 10L oxygen concentrator, optional with a 5 – way splitter (via deluxe alloy barb + tubing), supplies 93%±3% pure O₂ for up to 5 users simultaneously. It meets all flow needs (1 – 10LPM) for adults, kids in hospitals, homes, etc.
-
Runs 24/7 stably, needs minimal main – unit maintenance, and filter replacement needs no shell – opening — a key Dynmed selling point.
-
Featuring 24 – hour continuous work, 3 alarm systems (power off, pressure, compressor), and 93%±3% avg purity, this 10L concentrator suits diverse scenarios.
Description
Brief Introduction:
10L oxygen concentrator is the model which can be optional to equip with one deluxe alloy barb, using a tubing to connect the 5-way splitter so that it can produce average 93% purity oxygen to serve 5 peoples at the same time. It meet all range flow requirements for adult, pediatrics and child use in hospital, households, nursing rooms and etc. It can stably work in 24 hours a day and needs few maintenance of the main machine among its whole lifetime. Users do not need to open the machine body to do replacement of filters; this is also one of the best selling points among Dynmed products
Features
-
24 hours work continuously
-
Optional for using 5-way oxygen splitter for 5 peoples
-
Three alarm systems ( power off alarm pressure circulation fault alarm and compressor fault alarm)
-
AVG oxygen purity: 93%±3%
-
Low sound level: less than 55dB (A)
-
Net weight: only 23.2kg
-
Strong ABS shell, fashion style.
| Parameter | Details |
|---|---|
| Oxygen flow | 1 – 10 LPM |
| Output pressure | 58.6±6 kPa |
| Power supply | AC220V±22V, 50Hz; 110V±10V, 60Hz |
| Input power | 720VA (AVER) |
| Oxygen concentration | 1 – 10 LPM 90%±3% |
| Operation Environment | Temperature 5°C – 40°C; Humidity ≤80%; Atmospheric pressure: 86kPa – 106 kPa |
| N.W. (Net Weight) | 22.6kg |
| Noise | < 50dB (A) |
| Size | 43cm32cm62cm (lwh); Carton Size: 503771cm |
| Operation regular | Time cycle/pressure rotation |
| Transportation/storage condition | Temperature – 20°C – 55°C; Humidity ≤90%; Atmospheric pressure: 86kPa – 106 kPa |
