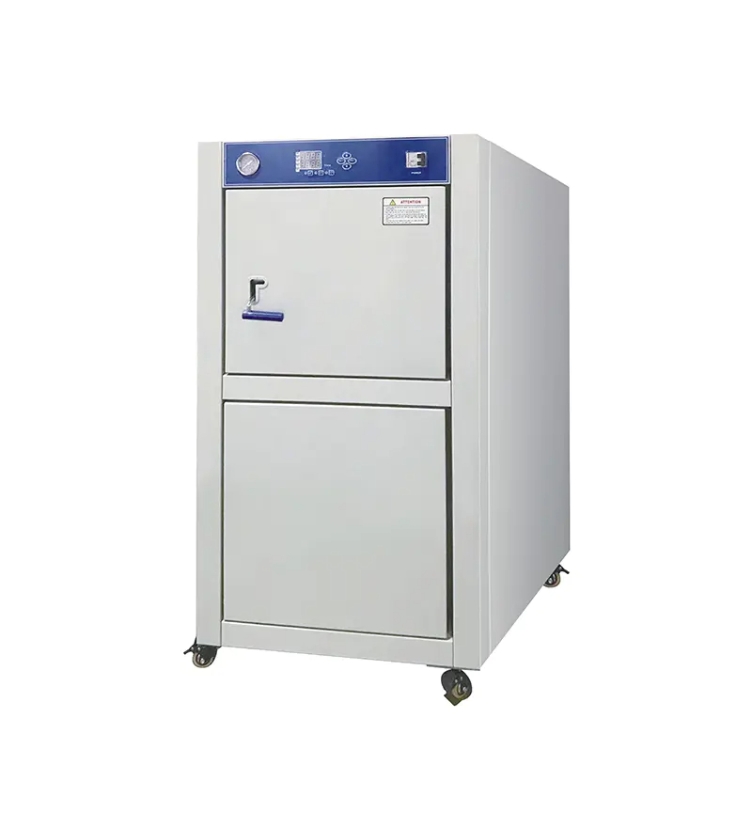

100Liters Horizontal Pressure Steam Sterilizer BJ

  • 100L horizontal pressure steam sterilizer (WS – 100YDB), horizontal chamber design, for medical and lab sterilization. Professional installation and maintenance required.

  • 4 – 6 mins rapid sterilization, digital touch control, water – lack protection, 3 adjustable programs. Full – process auto, steam – water inner circulation, door safety lock. Stainless steel chamber + 2 sterilizing plates. Auto shut – off with beep after sterilization, with drying.

  • Tech specs: 0.22Mpa pressure, 134℃ working temp (105 – 134℃ adjustable), 0 – 99min time, 9kw power, size 930×690×1330mm, G.W 280kg/N.W 245kg.

Description

100-liter Horizontal Pressure Steam Sterilizer refers to a sterilization device with a horizontal chamber design and a capacity of 100 liters. This type of sterilizer is commonly used in medical and laboratory settings for the sterilization of various instruments, equipment, and materials. The chamber is oriented horizontally, which is a common design for larger-capacity sterilizers. This allows for the efficient loading and unloading of materials. Larger-capacity sterilizers are often used in hospitals, laboratories, and industrial settings where a higher volume of materials requires sterilization. The door safety lock system, Ensures that the door cannot be opened until the internal pressure is reduced to a safe level. This equipment Typically requires professional installation and periodic maintenance to ensure proper functioning and longevity.

● For 4~6 minutes rapidly sterilized.
● Digital display of working status, touch type key.
● Wit- protection of water lacking.
● Exhaust the h 3 fixed cycles of the sterilizing program and adjustable for the user.
● The whole process of water adding, temperature rising, sterilizing, drying steam discharging is controlled automatically.
● Steam-water inner circulation system: no steam discharge and the environment for sterilizing will be clean and dry.
● Safe cool air automatically.
● Door safety lock system.
● With 2 stainless steel sterilizing plates.
● The chamber of the sterilizer is made of stainless steel.
● Automatically shut off with a beep reminding after sterilization.
● With drying function.

MODEL/Technical Data WS – 100YDB
Sterilizing chamber volume 100L
Φ390×670mm
Working pressure 0.22Mpa
Working temperature 134℃
Adjustment of temperature 105 – 134℃
Time range 0 – 99min
Heat average ≤±1℃
Power 9kw/220V 50Hz
Dimension (mm) 930×690×1330
Package dimension (mm) 1100×720×1420
G.W/N.W 280/245kg
