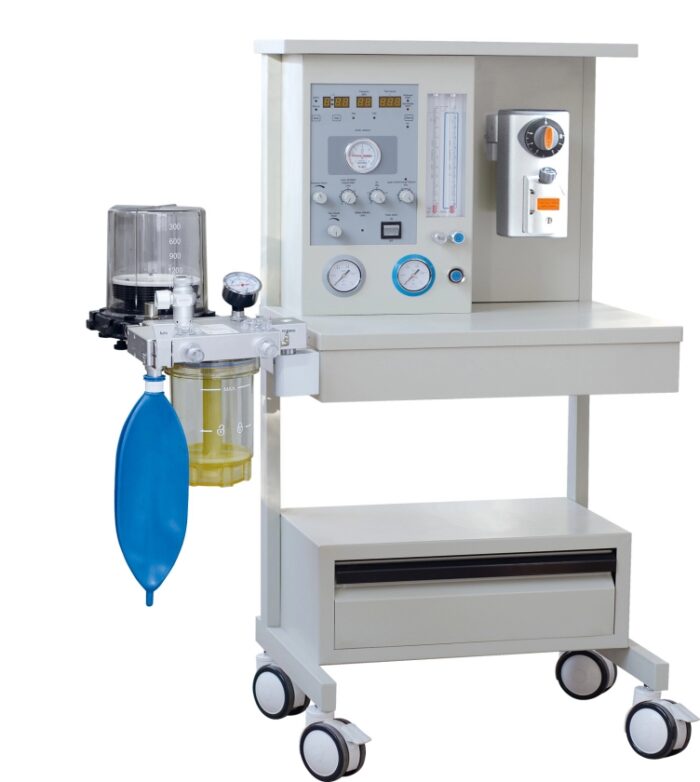

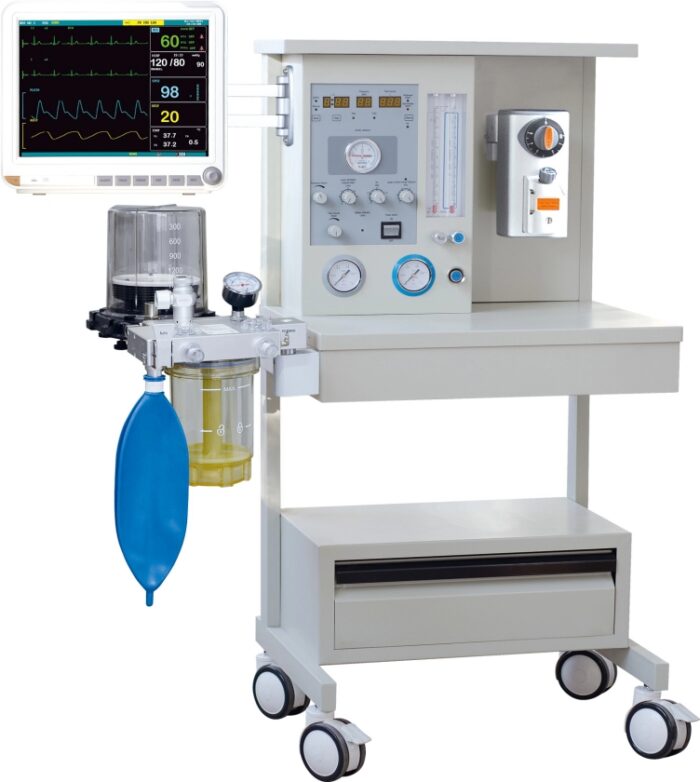

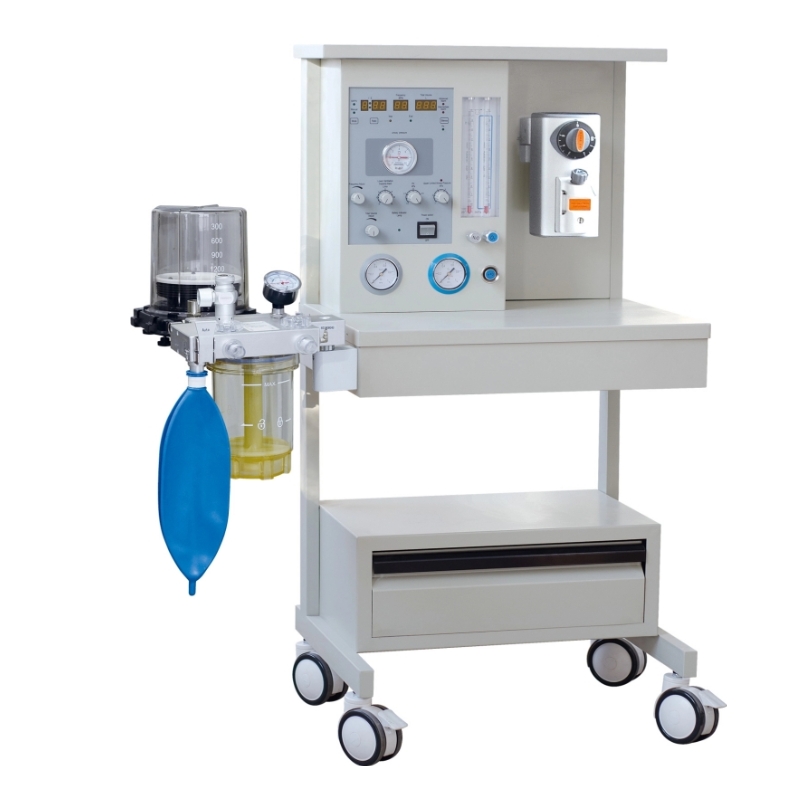

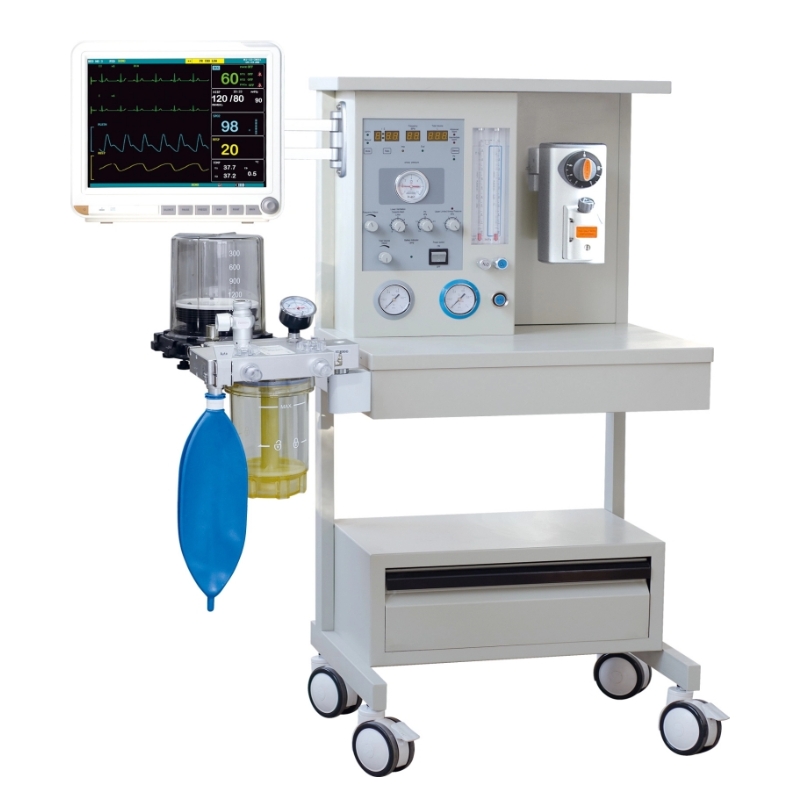

Anesthesia Machine PA 01c

• Pneumatically driven electronically controlled system
• Built-in ventilator, LED displayscreen
• With 1 patient circuit for adult (Option:patient circuit for children).
• 4-tube flow meters, O2 & N2O ;0.1 L/Min~ 10 L/Min;
• One vaporizer,Enflurane/Isoflurane/Sevoflurane; (Option: Halothane)
• Oxygen Flush: 25~75 L/Min;
• Respiration Mode: IPPV, SIPPV, SIMV, Manu
• Tidal Volume: 50~1500 mL;
• I:E: 1:1.5, 1:2.0,1:2.5, 1:3, 1:4;
• Respiration Frequency: 4~40 bpm;
• Ptr: -10~10 hPa;
• CO2 absorber capacity: 1 kg
• Alarm parameter: upper /lower limit of airway pressure, tidal volume exceed limitation, no tidal volume output, apnea, AC power malfunction, battery lowpower

Loop part

• Integrated design, integrated breathingcircuit

Evaporator

• High-precision single evaporator configuration, enflurane or isoflurane or Sevflurane or Haloflurane
• Concentration adjustment range: 0.5 ~ 5%VOL
• Evaporator flow, pressure, and automatic temperature compensation function
• Self-locking feature

Configuration

• Vaporizer: one vaporizer,Enflurane/Isoflurane/Sevoflurane ( Option: Halothane )
• Anesthesia gas concentration range:0.5~5%
• Soda lime absorption system: resistant to high temperature of 176 degrees Celsius.
• ISO certificates approved
