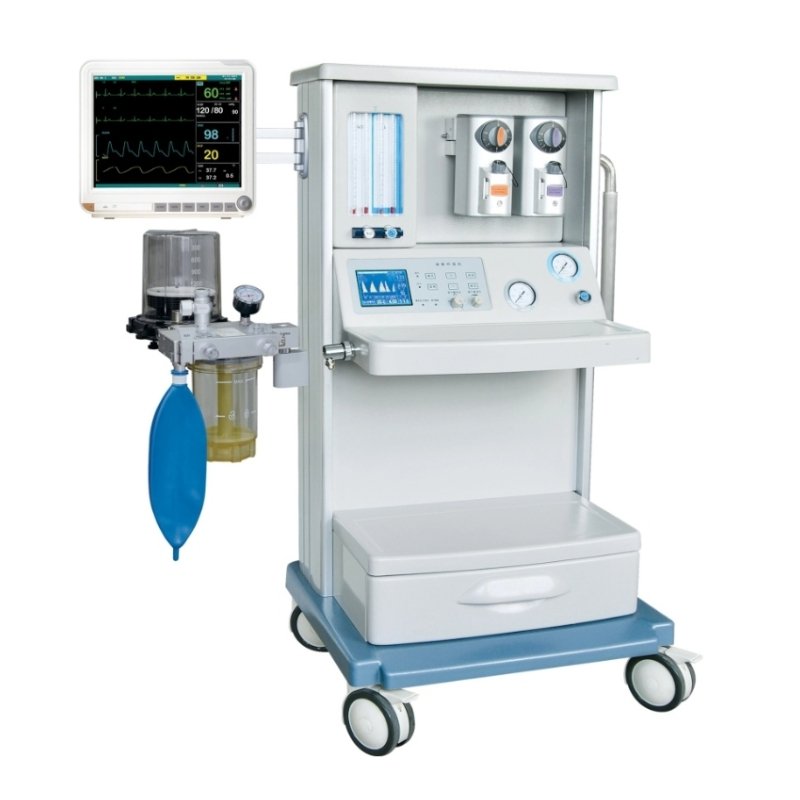

Anesthesia Machine PA 01B

• Pneumatically driven electronically controlled system
• Built-in ventilator, 5.4" LCD displayscreen
• With 1 patient circuit for adult (Option:patient circuit for children).
• 4-tube flow meters, O2 & N2O ;0.1 L/Min~ 10 L/Min;
• One vaporizer,Enflurane/Isoflurane/Sevoflurane; (Option: Halothane)
• Oxygen Flush: 25~75 L/Min;
• Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh
• Tidal Volume: 0~1500 mL;
• I:E: 4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2.0,1:2.5, 1:3, 1:4;
• Respiration Frequency: 1~99bpm;
• PEEP: 1~10 hPa;
• Ptr: -10~10 hPa;
• CO2 absorber capacity: 1 kg
• Lung compliance: ≤ 30 mL/kPa;
• IMV frequency: 1~12bpm
• Inspiratory Plateau: 0~1S;
• Alarm parameter: upper /lower limit of airway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery lowpower
• Built-in ventilator, 5.4" LCD displayscreen
• With 1 patient circuit for adult (Option:patient circuit for children).
• 4-tube flow meters, O2 & N2O ;0.1 L/Min~ 10 L/Min;
• One vaporizer,Enflurane/Isoflurane/Sevoflurane; (Option: Halothane)
• Oxygen Flush: 25~75 L/Min;
• Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh
• Tidal Volume: 0~1500 mL
• I:E: 4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2.0,1:2.5, 1:3, 1:4;
• Respiration Frequency: 1~99bpm;
• PEEP: 1~10 hPa;
• Ptr: -10~10 hPa;
• CO2 absorber capacity: 1 kg
• Lung compliance: ≤ 30 mL/kPa;
• IMV frequency: 1~12bpm
• Inspiratory Plateau: 0~1S;
• Alarm parameter: upper /lower limit of airway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery lowpower

Loop part

• Integrated design, integrated breathingcircuit

Evaporator

• High-precision single evaporator configuration, enflurane or isoflurane or Sevflurane or Haloflurane
• Concentration adjustment range: 0.5 ~ 5%VOL
• Evaporator flow, pressure, and automatic temperature compensation function
• Self-locking feature

Configuration

• Vaporizer: one vaporizer,Enflurane/Isoflurane/Sevoflurane(Option: Halothane)
• Anesthesia gas concentration range:0.5~5%
• Soda lime absorption system: resistant to high temperature of 176 degrees Celsius.
• ISO certificates approved
